Many engineers struggle with motors that underperform, overheat, or waste energy. The solution often lies hidden inside—neodymium magnets1.
Neodymium magnets drastically improve motor performance by increasing torque, reducing weight, and enhancing energy efficiency. They are the most powerful permanent magnets2 available today.
Neodymium magnets are the backbone of high-efficiency motors used in electric vehicles, robotics, drones, and industrial automation. Let’s break down exactly why they matter.
How do neodymium magnets improve motor performance?
Many motor designers deal with bulkier components, overheating, or low torque3 at critical RPMs. I’ve seen this problem in early prototypes before switching to NdFeB.
Neodymium magnets improve performance by delivering higher magnetic flux density4, enabling stronger torque and higher efficiency in compact motor designs.
The Science Behind Better Motor Output
Neodymium (NdFeB) magnets can reach a maximum energy product of up to 55 MGOe5, which means they can generate a stronger magnetic field6 in a smaller volume. This allows motors to become more compact, lighter, and better optimized in overall structure.
| Magnet Type | Maximum Energy Product (MGOe) | Common Applications |
|---|---|---|
| Neodymium | 30–55 | EVs, drones |
| Ferrite | 3.5–5.0 | Toys, fans |
| Alnico | 5–12 | Sensors, instruments |
By switching to neodymium magnets, a motor can increase its torque without increasing current. This results in higher energy conversion efficiency and reduced heat generation. I’ve seen clients who replaced ferrite magnets7 with neodymium magnets reduce motor overheating incidents by 30%.
Higher efficiency also extends battery life and enables quieter operation—especially beneficial for electric vehicles and robotics.
Read more about Magnets in Robotics8
What types of motors use neodymium magnets?
If you’re building brushless systems or compact automation, you’ve likely run into challenges fitting enough power into limited space.
Brushless DC motors9 (BLDC), servo motors, and stepper motors often rely on neodymium magnets for high torque and compact size.
Where Neodymium Lives Inside Motors
Here’s where neodymium shines:
- BLDC Motors: Ideal for drones, EVs, and fans due to their high speed and efficiency.
- Servo Motors: Used in robotics and CNC machines where precision matters.
- Stepper Motors: Provide incremental motion in 3D printers and automation systems.
NdFeB magnets are usually embedded in the rotor. Because of their strong magnetic field, even small-sized motors can generate significant force. This lets manufacturers reduce motor size while boosting torque output.
I’ve worked with EV clients who were able to reduce motor casing by 20% while maintaining the same torque profile, thanks to high-grade N52 neodymium magnets10.
What are the industrial applications of neodymium magnet motors?
Industrial buyers often face a tradeoff—performance or durability. With neodymium, they get both.
Neodymium motors are used in electric vehicles, robotics, medical devices, drones, wind turbines, and automation systems.
From Clean Rooms to Construction
Let’s break this down by industry:
| Industry | Application | Why Neodymium Matters |
|---|---|---|
| EV/Automotive | Powertrain motors, steering | Lightweight, high torque |
| Robotics | Actuators, arms | Compact, precise control |
| Medical Devices | MRI tables, surgical tools | Silent, energy-efficient operation |
| Aerospace | UAV propulsion, satellite mechanisms | Lightweight, radiation-tolerant |
| Automation/Factory | Conveyor motors, pick-and-place arms | High duty-cycle, minimal maintenance |
In one automation project, our team helped a client replace 3 ferrite motors with a single neodymium motor system. It improved uptime by 45% and reduced overall machine complexity.
How do neodymium magnets affect motor size, weight, and efficiency?
Motor designers often feel cornered: either bulk up the motor or lose performance. NdFeB changes the equation.
Neodymium magnets allow motor designs to shrink in size and weight without compromising power output—making them ideal for compact and efficient systems.

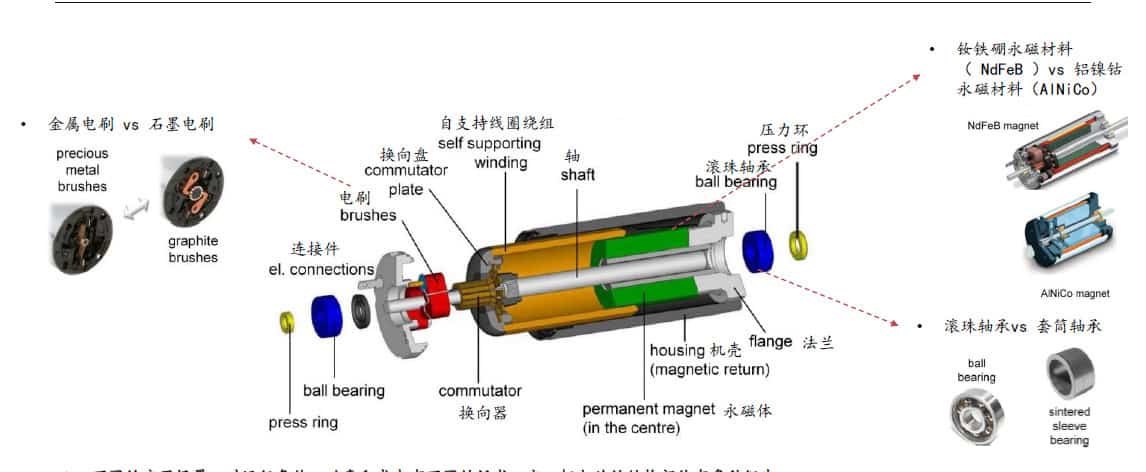

Less Volume, More Output
Here are the optimization results achieved with neodymium-magnet motors:
- Volume reduction: Some designs achieve up to 70% smaller size
- Weight reduction: Lighter overall structural load
- Efficiency improvement: Energy efficiency ratios above 90% are commonly achievable
I once assisted a client in the fan industry whose original design used a ferrite-magnet motor that was too heavy. After switching to an N48 neodymium magnet, each fan became 400 grams lighter, and the battery runtime increased by 22%.
These are not theoretical claims—they are real cases of energy savings and cost reduction from actual projects.
What are the considerations for selecting neodymium magnets for motors?
Picking the wrong grade or coating can ruin motor performance or lifespan. I’ve seen motors demagnetize11 under heat because of this.
Key factors include magnet grade (N35–N55), operating temperature, coating, size tolerance, and required pull force.
A Practical Magnet Selection Checklist
Here’s what I always walk clients through:
| Factor | Why It Matters |
|---|---|
| Grade (N35–N55) | Higher grades offer stronger fields. |
| Temperature Rating | Some motors exceed 100°C—use H, SH, or EH. |
| Coating | Choose NiCuNi, epoxy, or Zn for protection. |
| Pull Force | Match to torque requirements. |
| Tolerance | Motors need tight fits—custom sizing helps. |
For example, a client building motors for desert environments needed magnets that could survive 180°C. We provided SH-grade neodymium magnets with epoxy coating, which held up for 1,200+ hours of field use.
Always verify Curie temperature and demagnetization resistance before finalizing your design.
How does the durability of neodymium magnets benefit motor lifespan?
Motor failures are often due to component fatigue or corrosion. That’s where neodymium with proper coatings holds an edge.
With the right grade and coating, neodymium magnets can resist corrosion and demagnetization—significantly extending motor lifespan.

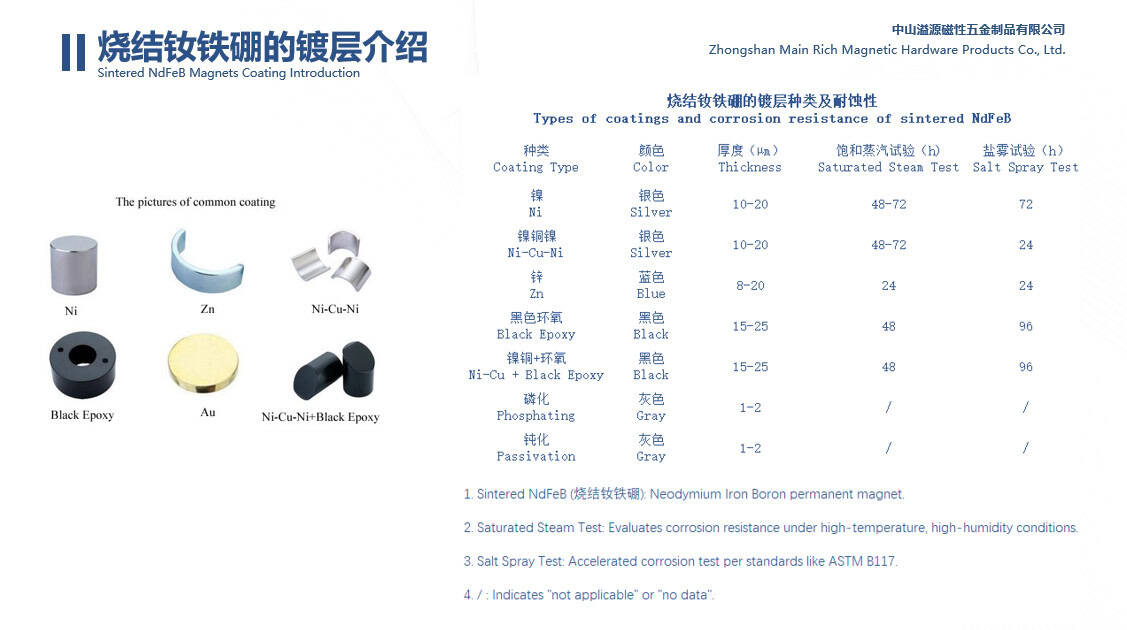

Protection Against Heat and Corrosion
Neodymium magnets are naturally brittle and prone to corrosion. But in motors, they are usually coated with:
- Nickel-Copper-Nickel (NiCuNi): Standard for general-purpose.
- Epoxy: For humid, salty, or chemical environments.
- Zinc: A cost-effective but thinner layer.
Many also opt for SH or EH grades that withstand higher temperatures without performance loss.
In one aerospace project, neodymium magnets coated with dual-layer epoxy survived 500 thermal cycles (-40°C to 150°C) without any magnetic decay.
Choosing the right protection isn’t optional—it directly protects your investment.
What industries benefit most from neodymium magnet motors?
Some industries demand power density, others need reliability. NdFeB motors deliver both.
Industries like EVs, robotics, aerospace, automation, and medical devices see the most benefit from neodymium magnets due to their size, power, and efficiency.
Use Case by Industry
Let me summarize the biggest winners:
| Industry | Use Case | Impact of NdFeB |
|---|---|---|
| EVs | Drivetrains, braking systems | Lightweight, high-torque |
| Robotics | Joints, actuators, end effectors | Precision, long life, low heat |
| Aerospace | UAVs, satellites | Extreme environment stability |
| Medical | Surgical robotics, pumps | Low noise, no EMI, compact |
| Industrial | CNC, conveyor, sorting motors | Energy savings, 24/7 duty capability |

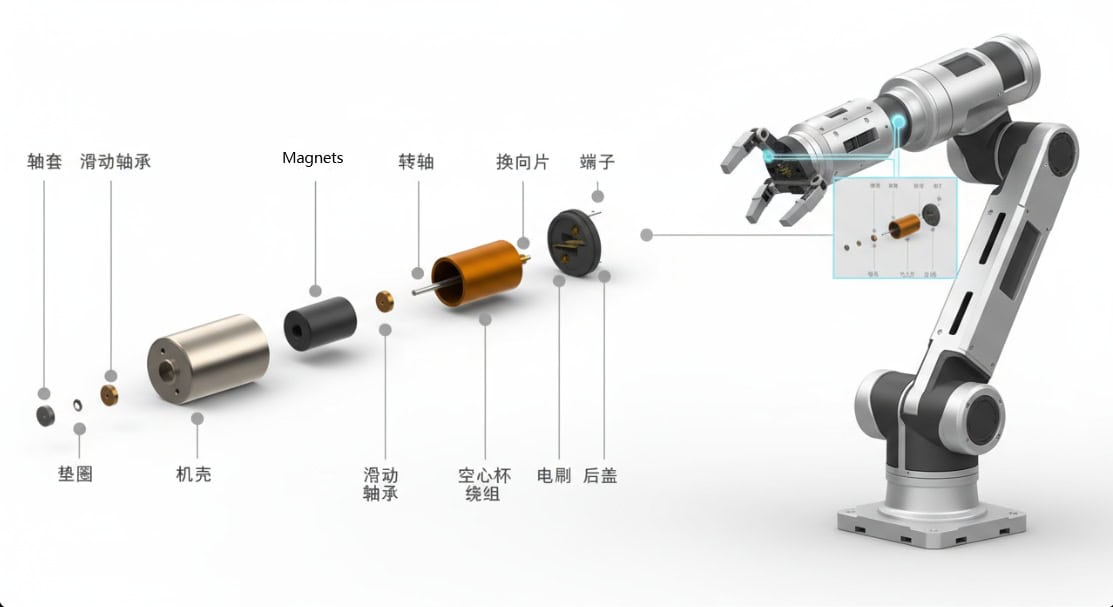

When we switched a client’s robotic arm from alnico to neodymium, they reported 3× more uptime between maintenance cycles.
Conclusion
Neodymium magnets don’t just boost motor performance—they reshape what’s possible in design, power, and durability.
