How Grain Boundary Diffusion Cuts Costs for High-Coercivity NdFeB Magnets?

Rising prices of rare earths are crushing project budgets. Engineers need strong magnets but can’t keep absorbing costs of dysprosium(Dy) and terbium(Tb).

🔬 Grain Boundary Diffusion (GBD)¹ is a proven method to reduce Dy and Tb usage in NdFeB magnets by up to 70%, cutting costs while keeping coercivity high.

Here’s a closer look at how GBD technology makes high-performance NdFeB magnets more affordable.

⚙️ Why Are High-Coercivity NdFeB Magnets So Expensive?

Demand is growing fast—but raw materials aren’t getting any cheaper.

High-coercivity NdFeB magnets² rely on Dy and Tb³ , rare and costly elements used to boost thermal stability.

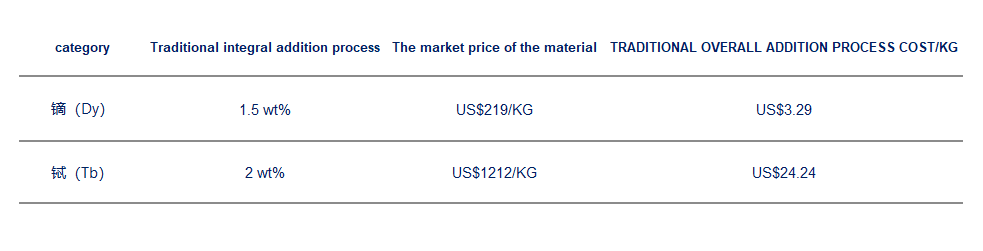

Price of dysprosium and terbium are volatile. At times, Dy and Tb oxide accounts for more than 30% of a magnet’s material cost. But we need Dy to improve coercivity, especially for motors operating above 150°C.

That’s a problem—because traditional methods waste most of the Dy added.

🔍 Cost Driver	💥 Impact	📌 Explanation
Dy/Tb Material Cost	Very High	Prone to supply risk and speculation
Inefficient Dy/Tb Distribution	High	Most Dy/Tb doesn’t reach grain boundaries
Overengineering Margin	Common	Extra Dy/Tb added to ensure performance

💡 The bottom line: it’s not just the Dy/Tb —it’s how we’re using it.

🧪 What Are the Limitations of the Traditional Dy/Tb Doping Method?

It works—but it’s wasteful and weakens the magnet.

Traditional Dy/Tb doping⁴ mixes Dy/Tb uniformly across the magnet, but only a fraction contributes to higher coercivity.

When Dy/Tb is spread throughout the entire grain, it lowers remanence (Br)⁵.
In other words, we’re paying more for a weaker magnet. Only the Dy/Tb at the grain boundaries improves coercivity (Hcj). But traditional methods have no way to control where Dy/Tb goes.

📊 Factor	🧱 Traditional Doping
Dy Usage Efficiency	~3.5%
Coercivity (Hcj)	↑
Remanence (Br)	↓
Cost	↑↑

That’s why we started looking for a smarter method—and found it in Grain Boundary Diffusion.

🔬 What Is the Grain Boundary Diffusion (GBD) Process in NdFeB Magnets?

We don’t need more Dy/Tb —we just need it to go where it matters.

Grain Boundary Diffusion (GBD)⁶ sends Dy/Tb exactly to the grain boundaries, where it strengthens coercivity without reducing remanence.

🔄 Here’s what the process looks like:

1. 🧱 Start with Dy/Tb-free sintered NdFeB magnets⁷.
2. 💧 Apply Dy/Tb-rich compounds (like DyF₃) to the surface.
3. 🔥 Heat the magnets. Dy/Tb atoms diffuse along grain boundaries.
4. 🧲 Dy/Tb gathers at the edges of grains, forming a shell structure that blocks demagnetization.

✅ Step	🔍 Purpose
Surface Dy/Tb Application	Delivers targeted Dy/Tb source
Diffusion Heat Treatment	Activates boundary migration
Shell Formation	Boosts Hcj, preserves Br

It’s more precise. More effective. And much more affordable.

💰 How Much Dy/Tb Can the Grain Boundary Diffusion Process Actually Save?

The numbers are clear—and they’re impressive.

GBD magnets can use 40-70% less Dy/Tb than traditional doping while maintaining the same performance.

📈 Let’s compare:

🧲 Magnet Type	Dy/Tb Content (%)	Hcj (kOe)	Br (kGs)	💸 Estimated Cost
Uniform Doped	3.5	20.5-22.0	14.3-14.6	High
GBD-Processed	0.8	20.5-22.0	14.3-14.6	70% Lower

For buyers sourcing large volumes—especially in EVs or robotics—the cost reduction can be significant: Same performance, more stability, less rare earths.

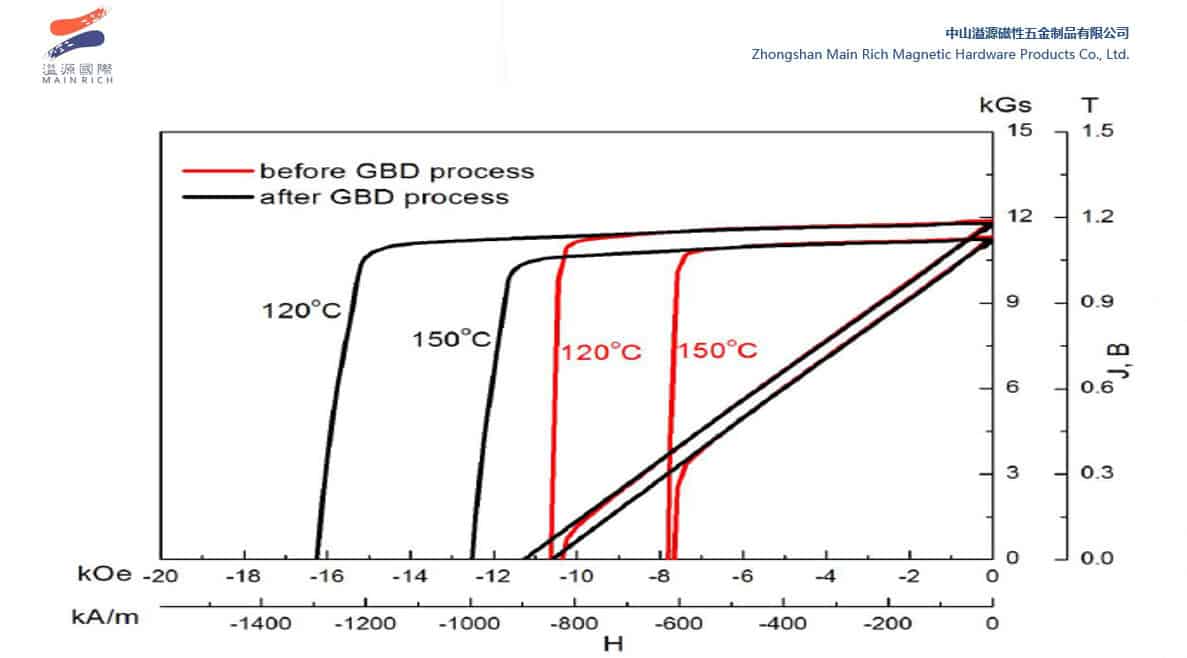

⚡ Does GBD Compromise Magnetic Performance?

No trade-off. In fact, it’s more stable.

GBD keeps coercivity high while maintaining remanence, thanks to targeted Dy/Tb placement.

Unlike full-grain Dy doping, which drags down Br, GBD limits Dy/Tb to the outer grain edges.
This keeps the core fully magnetized and stabilize overall strength.
Lab tests also show better thermal resistance in elevated-temperature applications like EV drive systems.

🔬 Metric	Tranditional Dy/Tb-Doped	GBD
Hcj (kOe)	20.5-22.0	20.5-22.0
Br (kGs)	14.3-14.6	14.3-14.6
Dy/Tb Used (%)	3.5	0.8

You’re not just saving on cost. You’re gaining in magnet quality.

🧭 Applications Where GBD Technology Adds the Most Value

Wondering if your application benefits from GBD?
Here’s how it adds value across key industries:

🚗 EV Drive Motors (Electric & Hybrid Vehicles):

One of the largest application areas for high-performance NdFeB magnets.

*Requirements:* High power density, energy efficiency, and thermal stability.
*GBD Advantage:* Grades like 52SH enhance driving range and motor output.

Learn more about how mangets are used in automotive industry

🤖 High-End Servo Motors:

Used in industrial robots, CNC machines, and precision automation.

*Requirements:* Fast response, low torque ripple, high positioning accuracy.
*GBD Advantage:* Delivers strong Hcj and energy density for responsive, compact motors.

🔧 Cordless Power Tools:

Includes drills, grinders, chainsaws, impact wrenches

*Requirements:* Compact design, light weight, high torque and efficiency.
*GBD Advantage:* Enables smaller, stronger, and longer-lasting battery-powered tools.

🌬 Direct-Drive Wind Turbines:

Especially large-scale offshore units.

*Requirements:* Low-speed torque, high efficiency, long lifespan.
*GBD Advantage:* High-grade magnets (50H–52SH) enable reliable, gearless turbine designs.

❄️ HVAC Compressor Motors:

For high-efficiency air conditioners and refrigerators.

*Requirements:* Energy efficiency, quiet operation, durability.
*GBD Advantage:* GBD magnets improve performance in variable-speed compressor motors.

🛗 Elevator Traction Motors:

Used in permanent magnet synchronous systems.

*Requirements:* High torque, compact design, smooth operation.
*GBD Advantage:* 48SH–52SH magnets support compact, efficient, and quiet elevators.

Got a project on Hand? Reach out to discuss!

⚠️ What Are the Trade-Offs or Technical Challenges of the GBD Process?

GBD isn’t plug-and-play. It needs expertise and careful control.

Controlling diffusion and heat treatment is complex, but manageable with the right know-how.

Temperature, time and the quality of the Dy/Tb source all affect magnet performance.Excessive diffusion can reduce remanence and poor surface finish can create roughness.

Dy/Tb should not be coated with a protective layer (e.g., Ni-Cu-Ni or epoxy) prior to diffusion, as this will interfere with diffusion.

⚠️ Challenge	🔍 Impact	✅ Solution
Diffusion Control	Uneven performance	Automated thermal profile monitoring
Surface Coating	Yield drop	Cleanroom application & QA
Process Time	Longer cycle	Cost offset by Dy/Tb savings

🏭 A mature factory like ours has already tuned these steps, but not every supplier has.

💡 Is GBD a Cost-Effective Alternative for Your Project?

The upfront work is worth the long-term savings.

GBD cuts total magnet cost by up to 50% in Dy/Tb-heavy designs, despite longer processing time.

💭 Think of it this way: If Dy/Tb accounts for 30% of your magnet cost, cutting that by 70% already saves you over 20% on the total.

For many of our clients in EV and automation, the ROI period is less than 3 months.

🧾 How to Evaluate and Choose a Supplier Offering GBD Technology?

Not every supplier claiming GBD can actually deliver the performance.

Ask about Dy usage data, grain boundary analysis, and performance test reports.

🧠 If you’re a procurement or R&D team, here are key questions:

• ✅ What is the exact Dy/Tb weight percent before and after diffusion?
• ✅ Can you provide Br-Hcj stability data over temperature?
• ✅ Do you have SEM images showing grain boundary Dy distribution?
• ✅ Is the process certified (e.g., ISO9001, IATF16949)?

Be sure to request test data above 150°C to simulate real-world applications and to avoid deviating from theory to actual performance.

❓ What to Ask	🧾 Why It Matters
Dy/Tb% reduction data	Proves cost advantage
SEM grain structure proof	Confirms real GBD process
Temperature stability test results	Matches your product environment
Production capacity and QA reports	Ensures consistent supply

With over 30 years of industry experience, MainRich can be a trusted partner for your next project, contact us for a free consultant

❓ FAQs

🔸 What is Grain Boundary Diffusion diffusion technology?
GBD selectively applies dysprosium at grain boundaries, reducing overall Dy/Tb usage while maintaining high magnet performance.

🔸 How much Dy/Tb can GBD save?
Typically 20-40% compared to traditional methods.

🔸 Does GBD negatively affect magnet performance?
No, it often improves coercivity and stableize remanence.

🏁 Conclusion

GBD technology offers a proven, cost-effective solution to reduce magnet costs and maintain high performance, making it a smart choice for modern magnet applications.
