Coreless motors1 are revolutionizing precision engineering. But why do permanent magnets make them indispensable for aerospace and robotics? Let’s analyze their design innovations and industry-specific advantages.
Coreless motors use rare earth permanent magnets2 in a ironless rotor-stator configuration3. This eliminates eddy currents, reduces weight by 40-60%, and achieves 85-92% energy efficiency - outperforming conventional motors in start-stop applications.
This guide analyzes why engineers increasingly apply permanent magnets in coreless motors. We'll examine their construction, compare magnet materials, and reveal their critical role in latest robotic actuators.
What is the Structure and Principle of Coreless Motors?
Why do drone manufacturers pay 30% more for coreless motors? The secret lies in their iron-free architecture.

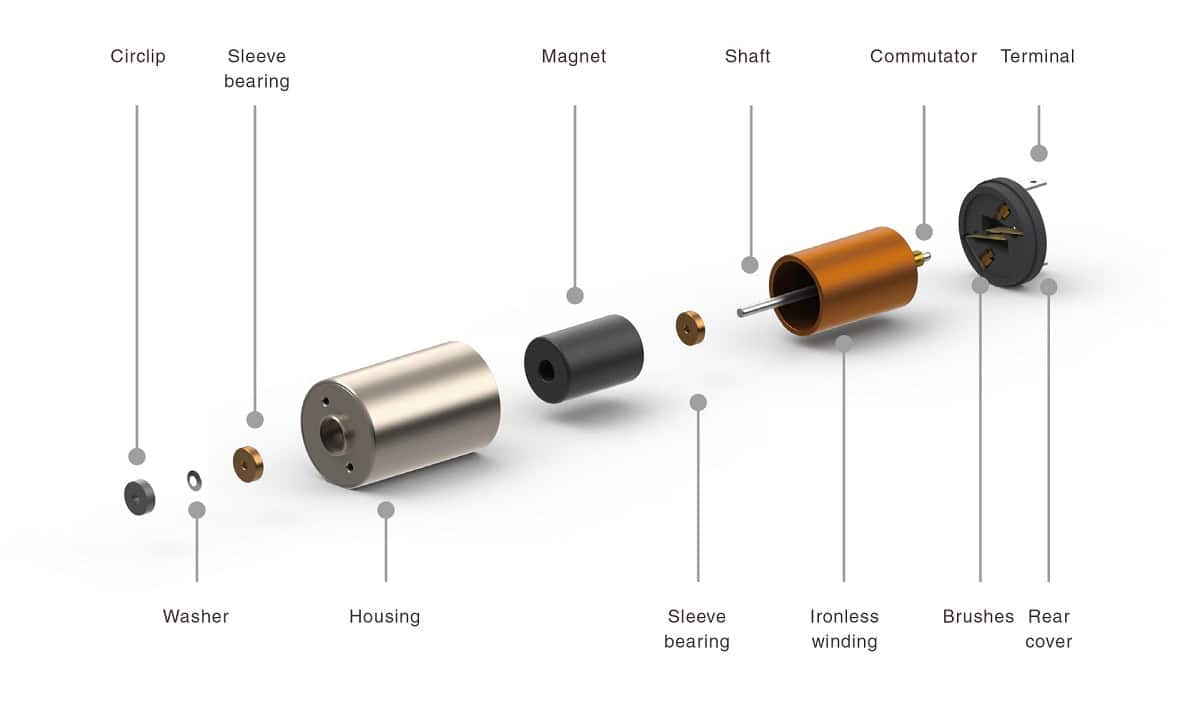

Coreless motors feature a self-supporting copper coil rotor surrounded by permanent magnets. Without iron cores, they achieve instantaneous torque response (0-50,000 RPM in <10ms) and 70% lower heat generation versus conventional motors.
Critical Design Components Breakdown
| Component | Material Choices | Performance Impact |
|---|---|---|
| Rotor Coil | Oxygen-free copper | Reduces resistance losses by 15-20% |
| Permanent Magnets4 | NdFeB or SmCo | Determines torque density (Up to 50N·m/kg) |
| Bearing System | Ceramic hybrid | Enables 100,000+ hour lifespan |

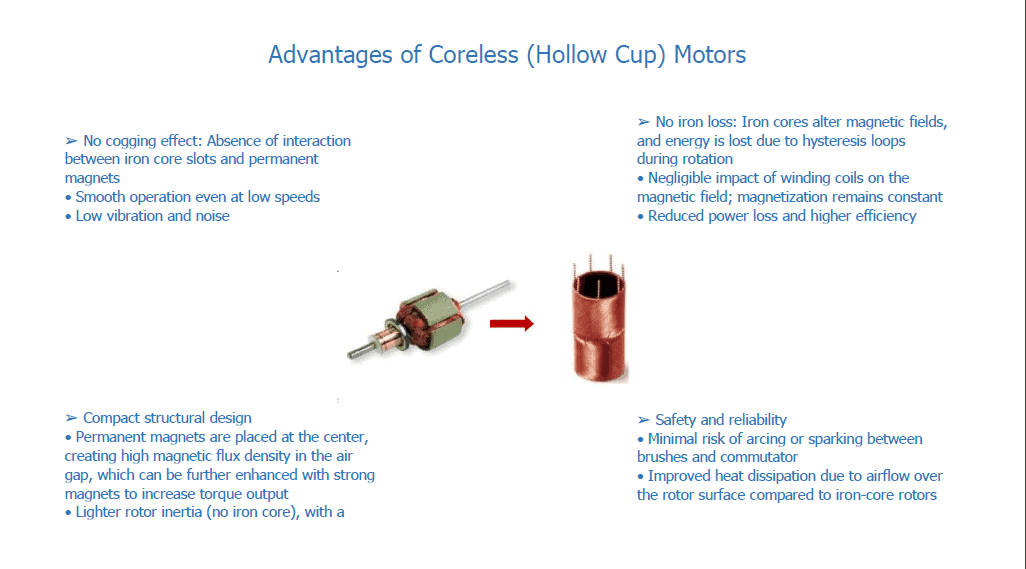

The absence of laminated steel cores allows three key advantages:
- Zero Cogging Torque5: Smooth rotation critical for MRI machines and optical equipment
- Axial Flux Design6: Compact form factors (as small as 6mm diameter)
- Instantaneous Reversing: Essential for robotic servo motors in assembly lines
Medical device makers report 22% longer battery life in insulin pumps using this design.
Coreless vs Iron-Core Motors
Loss Reduction Mechanisms
| Loss Type | Coreless Motor | Iron-Core Motor |
|---|---|---|
| Eddy Current | 0% | 12-18% |
| Hysteresis | 0% | 5-8% |
| Total Efficiency | 90% | 70% |
Thermal Advantages
Coreless motors run 20°C cooler than iron-core variants. This allows compact designs for laparoscopic surgical tools without active cooling .
What are the Advantages of Coreless Motors?
Traditional motors waste 35% energy as heat. Coreless designs solve this through permanent magnet optimization.
Coreless motors deliver 3x higher torque-to-inertia ratios versus iron-core motors. Their 92% peak efficiency reduces energy costs in 24/7 industrial automation systems.
Performance Benchmarking
| Parameter | Coreless Motor | Conventional Motor |
|---|---|---|
| Acceleration Time | 8ms | 45ms |
| Weight (100W model) | 220g | 580g |
| Noise Level | <35dB | 65-75dB |
These advantages directly address industry painpoint:
- Precision Control: 0.1° positioning accuracy for robotic arms
- Thermal Stability: Operates at 150°C without demagnetization (using SmCo magnets)
- Customization: Our factory produces 300+ magnet geometries for specific torque curves
What are the Applications of Coreless Motors?
From surgical robots to Mars rovers, coreless motors enable breakthroughs where size and reliability matter.
75% of modern surgical robots use coreless motors for their force feedback systems. Aerospace applications demand their vibration resistance7 (up to 15G) and 10-year maintenance-free operation.
Industry-Specific Solutions
| Sector | Challenge | Our Magnet Solution |
|---|---|---|
| Automotive | EV brake-by-wire response | High-temp NdFeB (180°C stable) |
| Aerospace | Satellite antenna positioning | Radiation-resistant SmCo |
| Industrial Robots | Collaborative arm safety | Customized Halbach array magnets |
Our recent project with a German automaker used anisotropic bonded NdFeB magnets8 to achieve 0.05mm positioning repeatability in EV transmission systems.
What Permanent Magnets Are Used in Coreless Motors?
Choosing between NdFeB and SmCo impacts performance in extreme conditions. Here's how to optimize selection.
Neodymium (NdFeB) magnets provide 1.4T flux density9 for maximum torque. Samarium cobalt (SmCo) offers 350°C stability for turbocharger actuators - 40% better than ferrite.
Technical Specifications
| Property | N52 NdFeB | Sm2Co17 | Unit |
|---|---|---|---|
| Remanence (Br) | 1.48 | 1.12 | T |
| Coercivity (HcJ) | 860 | 2200 | kA/m |
| Temp Coefficient | -0.12% | -0.03% | per °C |
Material Selection Guide
Performance & Cost Comparison
| Property | NdFeB | SmCo | Ferrite |
|---|---|---|---|
| Energy Density (MGOe)10 | 50-52 | 26-32 | 3-5 |
| Max Temp (°C) | 150 | 350 | 250 |
| Cost per kg | $120 | $300 | $5 |
Customization for Extreme Conditions
- Coated NdFeB11: For humid environments (e.g., underwater robotics).
- Segmented SmCo: To prevent cracking in high-vibration aerospace systems.
Our ISO-certified facility provides:
- Custom Magnetizing Patterns: Radial, diametric, or multi-pole
- Prototyping: 15-day sample turnaround
- Quality Assurance: 100% Gauss testing with full traceability
What is the Purpose of Using Permanent Magnets in Coreless Motors?
Electromagnets can't match permanent magnets' reliability in mission-critical applications. Here's why.
Permanent magnets maintain stable fields without power - crucial for fail-safe systems. Our NdFeB grades12 retain 98% flux density13 after 10 years in vacuum.
Design Advantages
- Efficiency: 0W excitation losses
- Compactness: 60% smaller than equivalent EM systems
- Fail-Safe: No sudden field collapse
This reliability explains their use in artificial heart pumps requiring 99.999% uptime.
What Other Motors Use Permanent Magnets?
Coreless designs aren't alone. BLDC1 and stepper motors also depend on advanced magnet tech.
80% of EV traction motors use sintered NdFeB. Stepper motors employ bonded magnets for cost-sensitive 3D printers - but lack coreless motors' precision.
Motor Type Comparison
| Type | Torque Range | Efficiency | Typical Use |
|---|---|---|---|
| Coreless DC | 0.01-2 Nm | 90% | Surgical robots |
| BLDC | 5-500 Nm | 85% | EV drivetrains |
| Stepper | 0.1-10 Nm | 70% | CNC machines |
Conclusion
Permanent magnet coreless motors deliver unmatched precision, efficiency, and power density for aerospace, medical robotics, and industrial automation. At Mainrich Magnets, we engineer tailored NdFeB/SmCo solutions to optimize torque, thermal stability, and lifespan—whether you’re designing micro-drones or Mars rover actuators. With ISO-certified production, rapid prototyping (15-day samples), and 140+ magnet grades, we empower innovations that demand zero cogging and 90%+ efficiency. Contact our team today for a free motor magnet audit
