If you’re choosing neodymium magnets¹ for your project, picking the wrong grade can lead to wasted cost, weak performance—or both.

N42 and N52 magnets differ primarily in magnetic strength, energy product, and cost-efficiency across different industrial applications.

Many industrial buyers assume “stronger is better”—but it’s not that simple. In this article, I’ll walk through the practical, technical, and economic differences between N42 and N52 neodymium magnets² so you can make the right choice for your manufacturing needs.

How do N42 and N52 magnets compare in magnetic strength and energy density?

If your application needs high magnetic pull³ in a compact size, you might think stronger is always better—but strength isn’t everything.

N52 magnets are about 20% stronger than N42 magnets in terms of maximum energy product and surface field.

Breaking Down the Magnetic Strength

The main performance metric we look at is (BH)max—the maximum energy product⁴. For N42, (BH)max is typically 42 MGOe (Mega Gauss Oersteds⁵), while N52 can reach up to 52 MGOe. That’s a significant leap.

This means N52 provides more magnetic energy per volume. For applications where space is tight—like high-performance BLDC motors or miniaturized sensors—N52 can offer real benefits. I’ve worked with a client in medical devices who shaved off 15% of their magnet volume just by upgrading to N52.

But there’s a tradeoff: N52 is more sensitive to heat and often more brittle. And the strength might be overkill in less critical applications.

What are the key differences in temperature resistance and demagnetization effects?

If your magnet heats up during operation, higher strength doesn’t guarantee long-term performance⁶.

N42 magnets generally have better thermal stability than N52 magnets and are less prone to losing magnetism under heat.

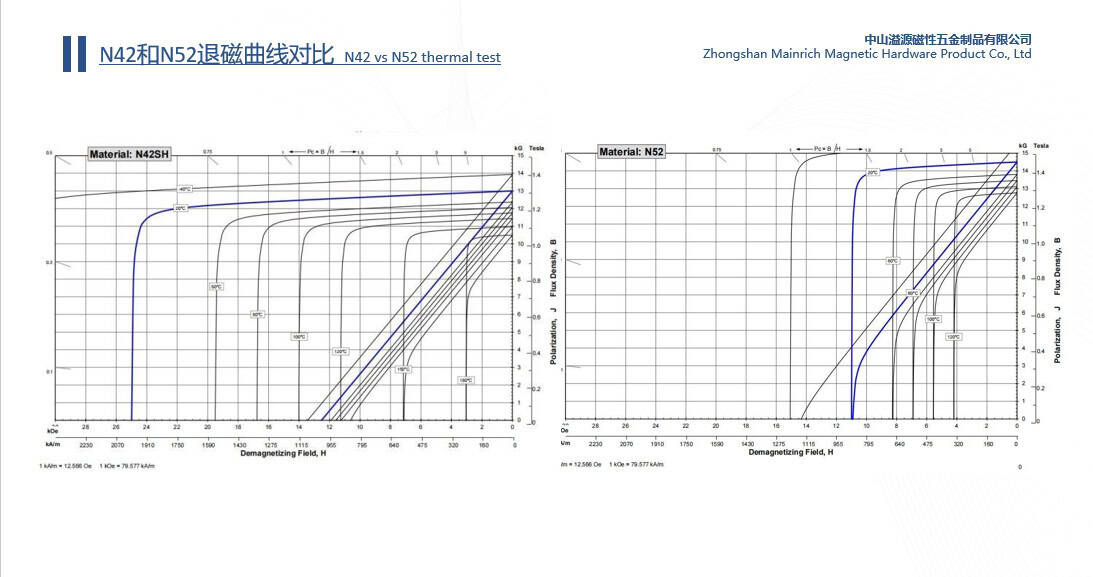

Thermal Behavior: Stability Matters

Neodymium magnets lose magnetic performance when exposed to high temperatures. N52 magnets have a lower maximum operating temperature⁷—typically 60–65°C, compared to 80°C for N42. In extreme cases, N52 can begin to demagnetize more quickly.

This can be a serious concern in applications like electric motors, actuators, or sensors exposed to friction or environmental heat. One of our automotive clients experienced 12% torque degradation when using N52 without proper insulation.

If you need both high strength and heat resistance, a better fit might be an N48H or N42SH magnet, which sacrifices some strength for thermal robustness.

How does cost and availability influence the choice between N42 and N52?

Let’s talk budget—because the strongest magnet isn’t always the most economical.

N52 magnets are significantly more expensive than N42 magnets due to higher rare-earth content and tighter manufacturing tolerances.

Cost-Performance Tradeoffs

The price of neodymium magnets scales with grade. N52 requires more neodymium per unit volume, and the manufacturing process demands stricter quality control. This raises both raw material and processing costs.

For large-scale orders, this cost difference becomes noticeable. For example, a client in automation equipment switched from N52 to N42 with optimized geometry and saved over $8,000 annually without performance loss.

Also, N52 magnets tend to have longer lead times and lower availability in custom shapes or coatings. If you’re designing for scale or working under tight timelines, N42 gives you more flexibility and predictability.

Which applications are best suited for N42 magnets versus N52 magnets?

Not every application needs the strongest magnet. Think fit-for-purpose, not maximum specs.

N42 magnets are ideal for general industrial use; N52 magnets are better for size-constrained, high-performance systems.

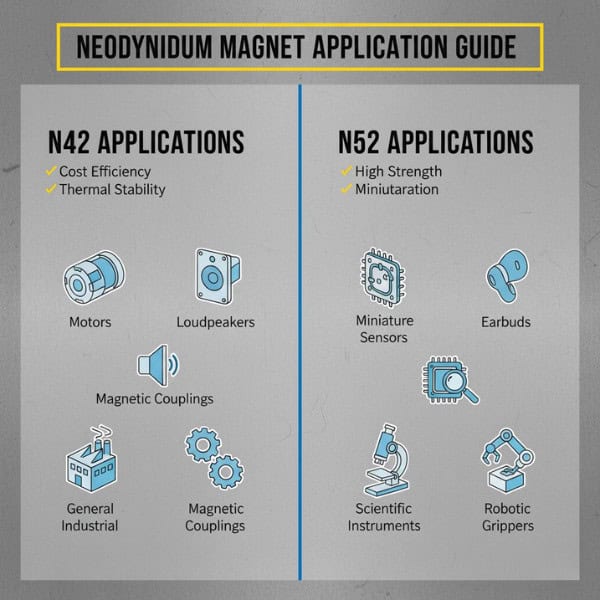

Application-Based Recommendations

For example, in robotics grippers, we often recommend N52 for their ability to deliver a stronger hold in compact frames. But in large-scale conveyor magnetic separation systems, N42 works perfectly fine—and at a fraction of the cost.

More about Magnets Applications⁸

What factors should industrial buyers consider when selecting neodymium magnet grades?

Magnet grade is not a standalone decision. It needs to fit into your whole design and supply chain.

Buyers should weigh magnetic strength, temperature range, mechanical stress, price, and availability before choosing a magnet grade.

A Practical Framework for Buyers

Here’s what I tell industrial clients when evaluating between N42 and N52—or any grade:

1. Operating Temperature: Does your application exceed 65°C? If yes, N52 may not be suitable unless coated or insulated.
2. Size Constraints: Are you trying to minimize volume? N52 allows for stronger fields in tighter spaces.
3. Budget: Are you price-sensitive? N42 offers excellent performance at a lower cost.
4. Availability: Do you need fast turnaround or specific shapes? N42 is more commonly stocked.
5. Environmental Risks: Will your magnet face vibration, impact, or heat cycling? N42 is generally more durable.
6. Precision Requirements: Do you need tight tolerances or magnetic balance? N52 requires higher QC and may suit precision tools better.

I usually help clients run a cost-benefit analysis using a magnet simulation tool or prototype samples. In many cases, switching from N52 to a customized N42 or N48 design gives 90% of the performance at 70% of the cost.

Conclusion

N52 offers more power, but N42 often wins in thermal durability, cost, and real-world efficiency. Match the magnet to the mission, not just the spec sheet.
