NdFeB Magnet Grade Selection for Motors: How to Match the Right Grade to Maximize Performance and Reliability?

When I first started designing motors, I underestimated how easily the wrong magnet grade could wreck everything. My prototype overheated and the torque collapsed.

Choosing the right NdFeB magnet grade¹ for motors improves efficiency, prevents demagnetization², and ensures long-term performance.

If you don’t pick the right magnet grade, your motor might fail under heat or overload. This article shows how to make smart, tested decisions for real-world use. For deeper insights, check out NdFeB vs Ceramic Magnets and our Magnet Coating Guide.

What Do NdFeB Magnet Grades Like 48H or 50UH Actually Mean?

I remember staring at a datasheet wondering what "48SH" meant. I thought it was just about strength. I was wrong. It’s about the whole operating story.

NdFeB grades combine a number (BHmax) and a letter (Hcj/Tw) to describe strength and heat tolerance.

Every grade has two parts. The number shows energy density (BHmax)³. The letter shows heat resistance⁴ and demagnetization strength. For example, 48SH offers 48 MGOe energy and can handle 150°C. Lower grades like N or M won’t survive high heat. Use a reference table to choose wisely.

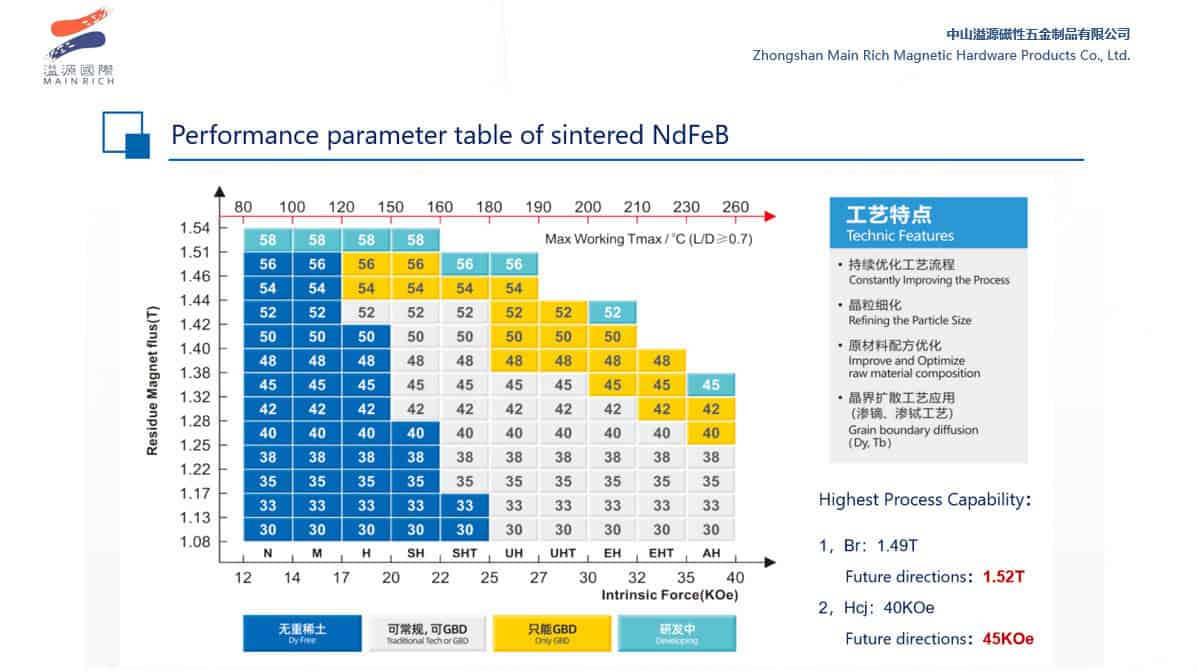

Common NdFeB Grade Chart

Grade	Max Energy (BHmax, MGOe)	Max Temp (Tw, °C)	Intrinsic Coercivity (Hcj, kOe)
N48	46~48	80	≥12
48SH	45~48	150	≥20
45UH	43~45	180	≥25
42EH	40~42	200	≥30
40AH	37~40	210	≥35

Which Magnetic Properties Matter Most When Designing Motors?

One of my early motor designs failed because I focused only on BHmax. I ignored how the magnet responded under heat. That mistake taught me a lot.

BHmax affects torque. Hcj affects stability. Tw sets safe temperature limits. All three must match your motor’s stress profile.

Motor magnets must handle heat, overloads, and duty cycles. Br (remanence) gives flux density. BHmax measures how strong a magnet is. Hcj⁵ shows resistance to demagnetization. Tw is the safe operating ceiling. You need a balance. Use high Hcj when working above 120°C or with peak torque demands.

Summary of Key Properties

Property	What It Does	Design Impact
BHmax	Energy storage	Affects torque, size
Hcj	Demag resistance	Prevents permanent losses
Br	Magnetic flux	Affects efficiency and control
Tw	Safe temp limit	Prevents thermal decay

How Do You Choose the Best Magnet Grade for Different Motor Applications?

I’ve tested dozens of motor types—from tiny fan motors to EV traction drives. The wrong magnet grade almost always caused early failures or wasted costs.

Use SH/UH grades for heat. Use N/H grades for low-temp, low-cost projects. Always match grade to environment and stress.

Every industry has unique needs. I group decisions by temperature and overload risks. Then I match a magnet grade that balances cost, strength, and lifetime reliability.

Recommended Grades by Motor Type

Application	Magnet Grade Suggestion	Reason
Servo Motors	42SH, 38UH	Handles overloads, tight space
EV Drive Motors	48UH, 45EH, 42AH	High heat and high torque
Wind Turbine PMGs	42EH, 38AH	Long-term reliability
Home Appliances	40H, 42H, 38SH	Balance cost with efficiency
Data Center Fans	35SH, 35UH	High-speed, low-failure needs

How Do You Balance Cost and Performance When Selecting a Grade?

I once specified 48EH magnets when 42SH would’ve worked fine. It blew the BOM budget. Lesson: performance overkill is wasteful.

Choose the lowest grade that still meets all operating limits. Overspec = overpay.

If you need high torque density or small space, use high BHmax. If your motor runs hot, prioritize Hcj and Tw. But if your design allows thermal headroom, try 40H or 42H. You might save 10–20% in magnet costs without any performance loss.

How Can You Prevent Magnet Demagnetization in Your Motor Design?

My client’s servo motors kept losing torque after overloads. Turned out their supplier used N-grade magnets. Total disaster.

Use high-Hcj grades, validate Tw against real temps, and avoid budget magnets in harsh applications.

Overcurrent spikes, high temperatures, or reversed fields can weaken magnets permanently. Hcj fights this. Always check that the operating environment matches the magnet’s Hcj rating. In tough cases, EH or AH grades are your best friend. And don’t forget to apply good thermal paths and coatings⁶.

How to Prevent Magnet Loss

Problem	Cause	Fix
Torque drop	High overload	Use SH/UH grade
Overheating	Poor cooling	Add heat sink, pick higher Tw
Rust & damage	Weak coating	Use epoxy + parylene

Which Magnet Grade Works Best for Your Industry?

Not all motors are built the same — and neither are their magnets. Whether you’re building a precision servo system or a high-efficiency EV motor, choosing the right NdFeB magnet grade makes all the difference. Let’s break it down by industry, so you can see exactly what works (and what doesn’t).

1. Servo Motors & Precision Automation

Servo motors are small but powerful. They need to move fast, stop fast, and handle overloads — all without losing performance.

• What to watch out for: Fast current surges, overheating, and demagnetization
• What matters most: Strong demagnetization resistance (Hcj) is more important than max magnetic strength (BHmax)
• Best magnet grades:
  • SH series (e.g., 40SH, 42SH, 45SH) — A balanced, reliable choice for most setups
  • UH/EH series (e.g., 38UH, 35EH) — For tough environments with high heat or load
  • H series (e.g., 38H, 40H) — For budget-sensitive designs (double-check heat risk!)

Avoid this trap: Don’t use high-BHmax magnets like 50N just to chase torque. They’re vulnerable to demagnetization during frequent start/stop cycles.

2. EV Drive Motors

Electric vehicles are tough on magnets. Your motor has to deliver high torque, operate at extreme temps, and never quit.

• Key challenges: Heat from both the environment and the motor itself, plus strong magnetic fields under high current⁷
• What to prioritize: Demag resistance (Hcj) and high-temperature tolerance (Tw)⁸ > raw strength
• Top picks:
  • 48UH, 50UH, 45EH, 48EH — Safe, powerful, and proven for 180–200°C
  • 42AH, 45AH — Built for extremes, handles 230°C (but pricey)
  • 42SH, 45SH — Great for scooters, pumps, or secondary motors

Industry trend: More EV makers are moving to 800V platforms + SiC inverters. That means stronger magnetic stress — and higher demand for EH and AH grades.

3. Wind Turbine Generators

Wind turbines are built to last 20 years or more. They can’t afford magnet failure — especially offshore.

• Pain points: Lifetime reliability, big temperature swings, salty air, and electrical interference
• What to focus on: Thermal and magnetic stability > power density
• Go-to grades:
  • 42EH, 45EH, 38AH, 42AH — Premium picks for big turbines, handle 200–230°C
  • 40UH, 42UH — Can work for smaller onshore units if tested thoroughly

Reminder: These magnets need serious protection — coatings like epoxy + Parylene are a must. Consistency and aging resistance are non-negotiable.

4. Home Appliance Motors (Compressors, Washers, Fans)

In appliances, it’s all about cost, efficiency, and reliability. Your magnet must hit the sweet spot without overspending.

• Challenges: Tight spaces, rising energy standards, long-term durability — all at scale
• Strategy: Use just enough magnet to meet efficiency and thermal needs. No more, no less.
• Best value grades:
  • 40H, 42H, 44H — Perfect for inverter compressors (Tw ≈ 120°C)
  • 38SH, 40SH — For premium air conditioners or limited cooling designs
  • 38H, 40H, 35SH — Well-matched for direct-drive washing machines

Pro tip: In high-volume manufacturing, saving just 1% on magnet costs can boost your profit margin in a big way.

5. High-Speed Fans & Water Pumps

Whether it’s cooling a data center or pumping water through a building, these motors run long hours at high speeds.

• Demands: Silent, efficient, durable — especially in harsh or corrosive conditions
• What to look for: Magnets that stay stable even with heat and constant motion
• Smart choices:
  • 35SH, 38SH, 35UH — Ideal for industrial and server cooling fans
  • 38H, 40H, 40N — Good enough for home fans where stress is lower
  • H/SH series — Chosen for water pumps depending on submersion and power level

Different industries need different magnet strategies. Instead of buying the “strongest” magnet on paper, match the magnet grade to your motor’s environment, temperature, and duty cycle.

If you’re not sure which one to pick, test 2–3 grades under real conditions. Prototypes always tell the truth.

What Common Questions Do Engineers Have About NdFeB Magnet Grades?

I’ve answered these in more meetings than I can count. They always come up.

Grades differ by Hcj and Tw. BHmax isn’t everything.

Engineer FAQs

• Are SH and UH the same?
  No. SH is ~150°C. UH is ~180°C.

• Is 48H stronger than 42SH?
  Not in demag resistance. 42SH is safer for heat.

• Can I use N48 in servo motors?
  Risky. Better to use SH grade.

• What’s best for 160°C?
  UH or EH. Never below SH.

• What’s the difference between Hcj and Hcb?
  Hcj is intrinsic coercivity (resistance to demag); Hcb is the coercive force (external field needed to demagnetize).

• Do higher grades always mean better?
  No. Use what fits your environment. Higher grade = higher cost, not always needed.

How Can You Build a Step-by-Step Magnet Grade Selection Process?

To avoid mistakes, I use a 5-step checklist before locking in any magnet spec.

Follow a clear flow: temperature → field strength → performance → cost → test.

Magnet Grade Selection Flow

1. What’s your max internal motor temp?
   Choose based on Tw (e.g. >180°C = UH+).
2. What’s your max demag risk?
   High current? Use high Hcj.
3. What torque/power do you need?
   Small size needs high BHmax.
4. How tight is your budget?
   Use lower grade if stress allows.
5. Test under real conditions.
   Prototype always wins theory.

Read this guide to master magnet procument

Conclusion

Choosing the right NdFeB magnet grade saves cost, boosts reliability, and prevents failure. Don’t guess. Design smart.
