Strong Magnets Redefined: How Heavy-Duty Neodymium Magnets Solve Industrial Challenges?

Your robotic arm jerks unpredictably during high-speed assembly1. The motor overheats, causing production delays. What if a single component could eliminate these issues while cutting energy costs by 15%?

Heavy-duty neodymium strong magnets2 provide unmatched strength and durability for industrial applications. These rare earth magnets deliver 10x stronger holding power than traditional ferrite magnets, withstand extreme temperatures up to 230°C, and maintain performance under intense mechanical stress - making them ideal for precision automation and high-torque motors.

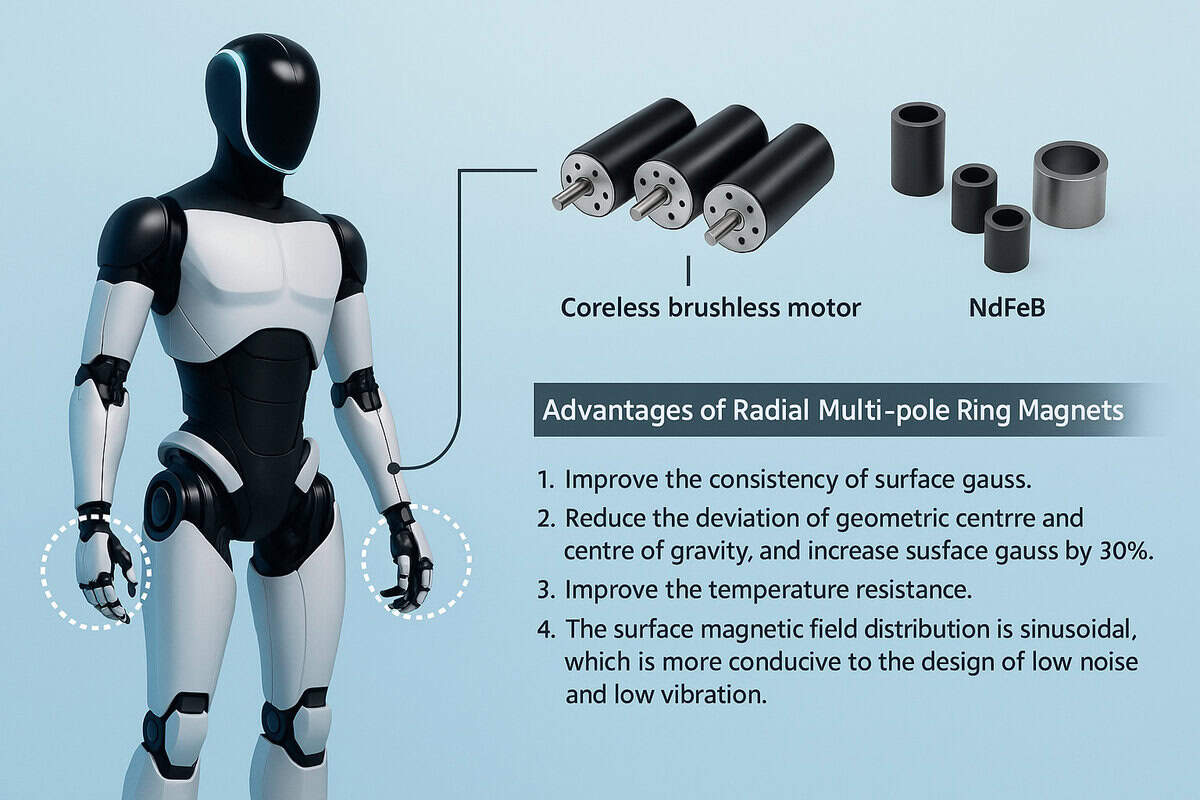

Robotic Arm Using Neodymium MagnetsBut how exactly do these super magnets transform industrial operations? Let\'s break down the critical questions engineers and buyers need answered before specifying magnetic components.

What are the industrial permanent magnets?

Picture this: Your production line halts because a motor\'s magnetic coupling failed. Industrial permanent magnets prevent such disasters through reliable, long-lasting magnetic fields.

Industrial permanent magnets maintain magnetic properties without external power. Key types include neodymium (NdFeB), samarium cobalt (SmCo), alnico, and ferrite magnets. Neodymium magnets dominate modern applications due to their superior strength-to-weight ratio and cost efficiency.

Magnet Type Comparison Chart### Three Critical Factors in Industrial Magnet Selection

Neodymium magnets revolutionized industrial applications since their 1984 debut. While SmCo handles higher temperatures, NdFeB\'s N55 grade3 offers the strongest commercial magnetic field at 1.48 Tesla.

What are heavy duty strong magnets used for?

When a German automaker needed to reduce EV motor weight by 40%, they turned to heavy-duty magnets4. The results? Increased range and torque.

Examples of Heavy-duty magnets enable critical functions in differnet industies:

1. Robotic servo motors (precision movement)
2. MRI machines5 (stable magnetic fields)
3. Wind turbines (efficient power generation)
4. Aerospace actuators (lightweight reliability)

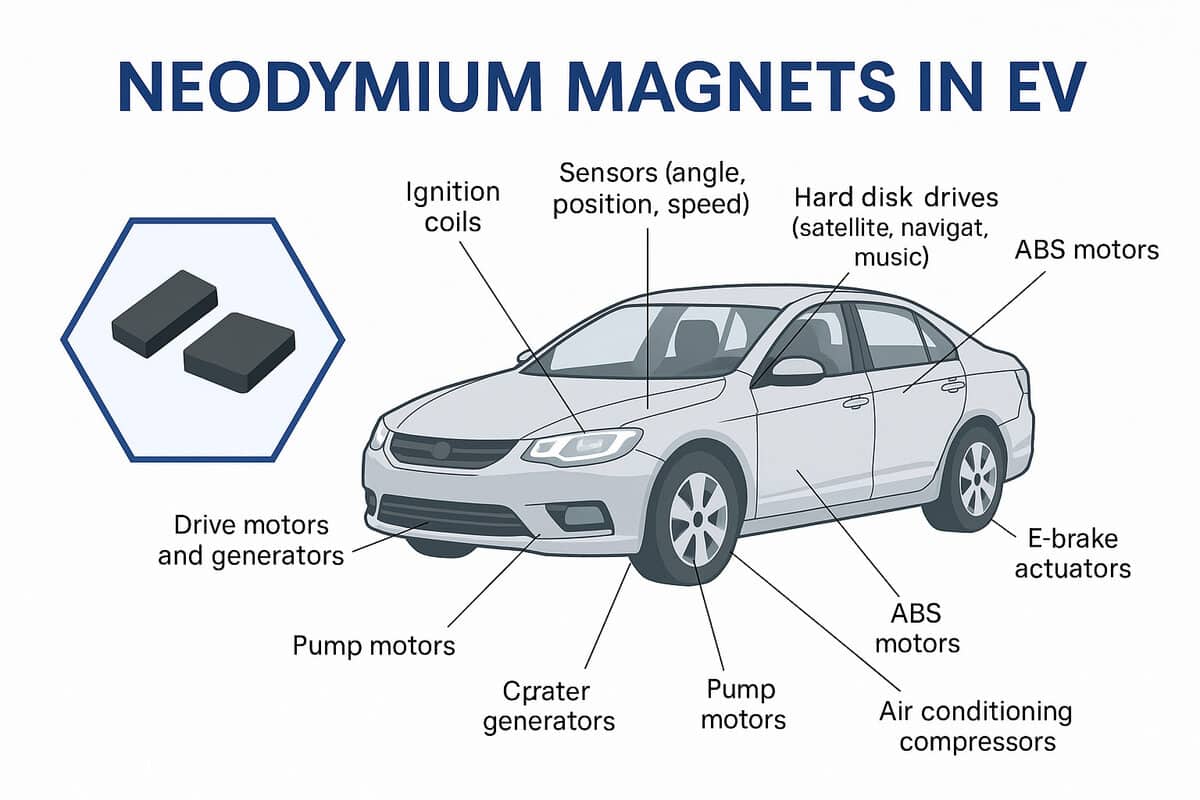

EV Motor Magnets### Real-World Applications Breakdown

Case Study 1: A Japanese robotics firm achieved 25% faster cycle times using our N45H-grade magnets in SCARA arms. The key? Maintaining magnetic flux density6 above 1.3T at 150°C operating temperatures.

Case Study 2: Our custom diametrically magnetized rings helped a medical device maker miniaturize MRI components by 30% without sacrificing image resolution.

For industrial buyers, three specs matter most:

1. Maximum Operating Temperature
2. Coating Type (e.g., Ni-Cu-Ni vs. Epoxy)
3. Demagnetization Curve Stability

We recently developed a patented asymmetric magnet array7 for warehouse robots that reduces cogging torque by 18% - proving that proper magnet engineering directly impacts operational efficiency.

Choosing the Right Magnet Grade: Beyond N52

N52 isn\'t always the answer. When a Japanese motor supplier insisted on using it, we demonstrated how N42SH increased their production yield by 11%.

The strongest grade depends on operating conditions:

• N55: Peak strength (1.48T) but only for <80°C environments
• N50SH: Balances 1.45T flux with 150°C heat tolerance
• 45H: High coercivity for dynamic demagnetization resistance8

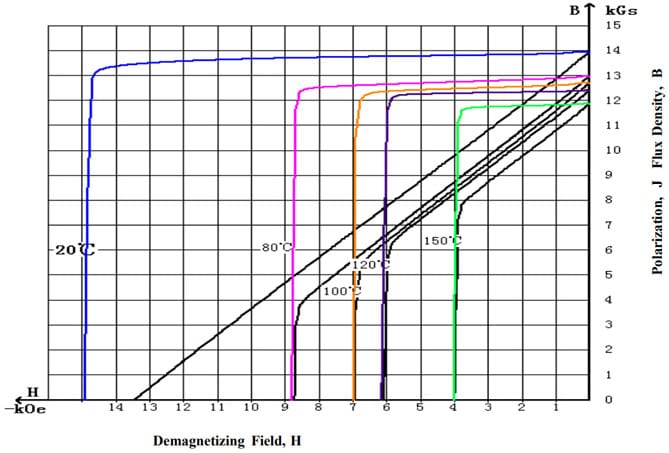

Grade Performance vs Temperature### Grade Selection Workflow

1. Define Operating Temperature

   • Add 20°C safety margin to max ambient temp

2. Calculate Demagnetization Risk9

   • Use formula: HcJ ≥ (Bd × μ0) + (Hexternal × 1.3)

3. Corrosion Requirements10

   • Humid environments need Ni-Cu-Ni or gold plating

4. Cost Constraints

   • Higher HcJ grades cost 8-12% more per MGOe

In MainRich We provide free Magnetic Circuit Design Kits with 200+ pre-validated configurations to our clients for industrial applications.

Are thicker neodymium magnets stronger?

A 3mm thickness reduction in elevator brake magnets saved a client $420,000 annually - without compromising safety. Here\'s why bigger isn\'t better.

Magnetic force depends on:

• Grade: Higher N numbers allow thinner designs
• Orientation: Axial vs diametric magnetization
• Circuit Design: Flux concentration techniques11

Magnet Dimension Testing### Thickness Optimization Principles

1. Saturation Point: Beyond 10mm thickness, incremental gains diminish
2. Orientation: Axially magnetized discs gain less from thickness than diametric rings
3. Cost Impact: Thicker magnets increase material costs by 30-50%

We helped a medical device manufacturer reduce magnet thickness from 8mm to 5mm while maintaining performance by:

• Switching from N42 to N50 grade
• Implementing Halbach array configuration
• Using soft magnetic composites in the assembly

The result? 40% weight reduction and $280k annual material savings. Our engineers use COMSOL Multiphysics simulations12 to predict flux density distribution before cutting any material - preventing costly trial-and-error.

Conclusion

Heavy-duty neodymium magnets solve modern industrial challenges through unmatched strength and adaptability. From precision robotics to sustainable energy, choosing the right magnet requires balancing grade, geometry, and application demands - exactly where 30 years of Mainrich expertise delivers results.

FAQ

What are the key industrial applications of strong neodymium magnets?

Industrial-strength neodymium magnets are integral in sectors like electric motor production, medical imaging equipment, wind turbines, and advanced electronics. Their high magnetic energy density and compact form factor make them ideal for applications requiring powerful magnetic fields in limited spaces.

How do I choose the appropriate grade and size of neodymium magnet for my application?

To select the right neodymium magnet, assess the required magnetic pull force, operational temperature, and spatial limitations. Grades like N42 and N52 denote the magnet\'s strength, with higher numbers indicating stronger magnetic fields. Consider the magnet\'s shape and coating based on environmental exposure and application specifics.

What safety precautions should I take when handling strong neodymium magnets?

Handle neodymium magnets with care to prevent injuries. Keep them away from electronic devices and magnetic storage media, as their strong fields can cause data loss. Use protective gloves to avoid pinching, and store them with spacers to prevent accidental attraction.

How do neodymium magnets compare to other types like samarium-cobalt or ceramic magnets?

Neodymium magnets (NdFeB) are the strongest permanent magnets available, offering high magnetic strength in compact sizes. However, they are more susceptible to corrosion and have lower temperature resistance compared to samarium-cobalt (SmCo) magnets. Ceramic magnets are more affordable but significantly weaker.

Where can I find reputable suppliers of industrial-grade neodymium magnets?

For high-quality industrial-grade neodymium magnets, consider reaching out to Mainrich Magnets. With over 30 years of experience, Mainrich offers a comprehensive range of neodymium magnets, including custom solutions tailored to your specific needs. Our products are trusted by global leaders across various industries, ensuring quality and reliability.
