What is a Halbach array and why does it matter for industrial magnets?

Halbach array¹s, with their one-sided magnetic flux² phenomenon, enhance industrial magnet performance without increasing weight or cost. Their customized field shaping³ is revolutionizing multiple sectors.

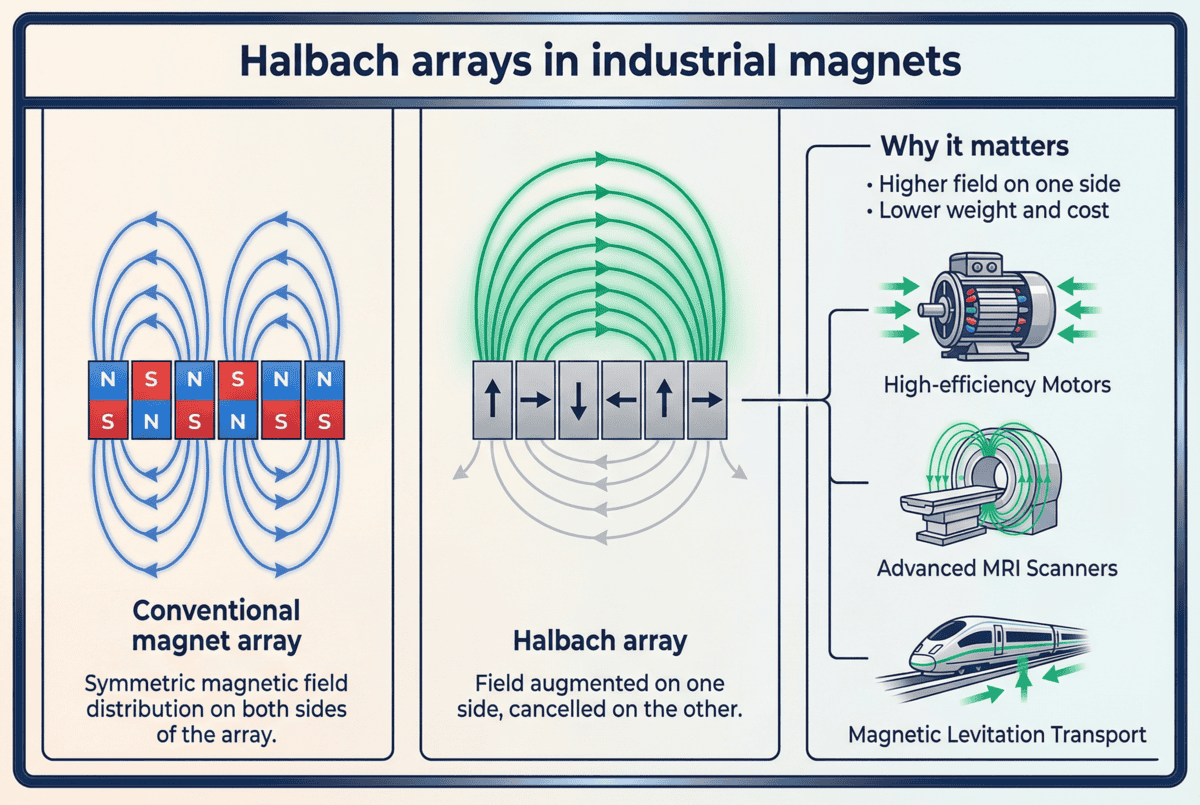

A Halbach array is an arrangement of permanent magnets⁴ that amplifies the magnetic field on one side while canceling it on the opposite side, offering unmatched efficiency in applications from motors to MRI machines.

Understanding how Halbach arrays work is crucial for industries striving for more efficient, compact, and cost-effective magnetic solutions.

How does a Halbach array work?

Halbach arrays, utilizing one-sided magnetic flux, revolutionize how industries use magnetic fields by enhancing efficiency and reducing waste.

The unique physical principle behind Halbach arrays is their magnetic orientation, which cancels out one side's field while doubling it on the opposite side. This field shaping is achieved by segmenting the magnets appropriately.

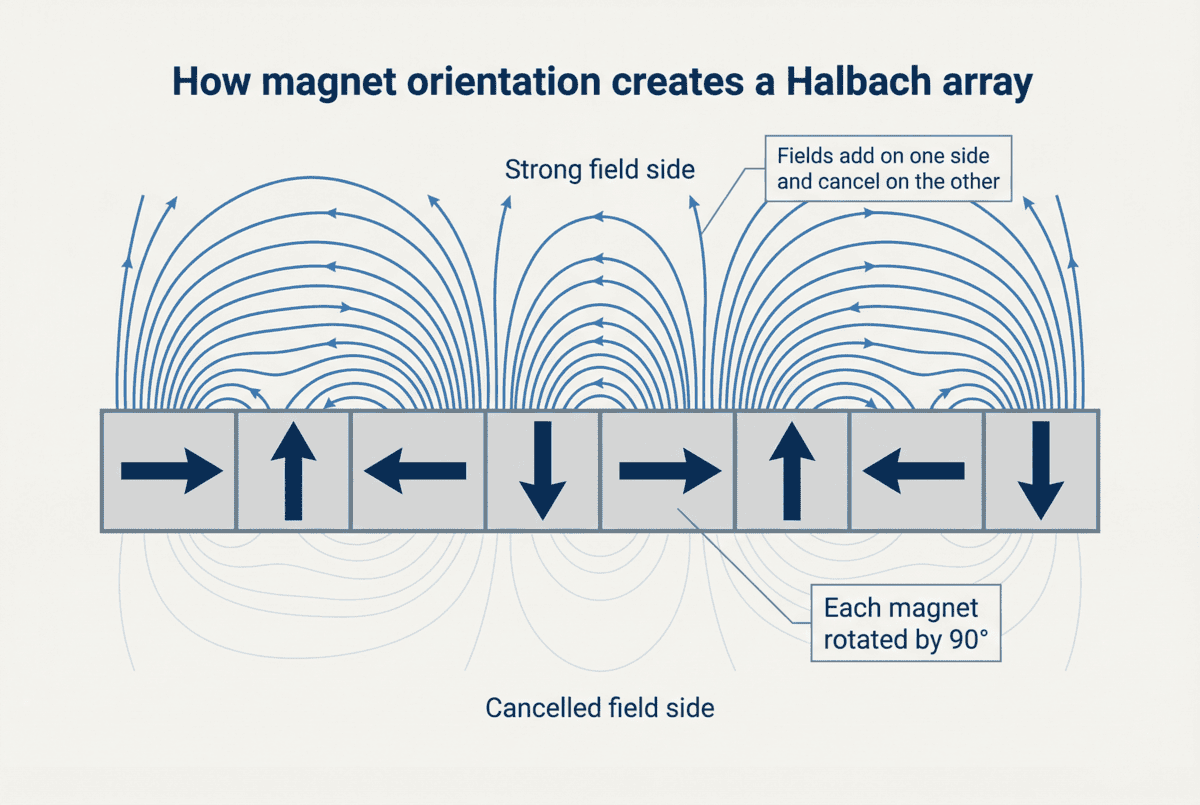

Magnet orientation and segmentation are crucial in Halbach arrays for field shaping. Each magnet in the array is rotated by a specific angle, often 90 degrees, compared to its neighbor. This series of rotations generates a strong, unidirectional magnetic field on one side while nullifying it on the other. This arrangement is made possible by specific internal geometries that exploit the superposition of magnetic fields and make them incredibly efficient for applications requiring precise magnetic field control. Motors, generators, and even medical devices like MRIs benefit from this setup.
For industries, the implications are significant. This ability to direct and control magnetic flows leads to increases in energy efficiency and reductions in overall system size and weight. It's particularly advantageous in systems where weight and space savings translate directly into cost savings, such as aerospace and automotive sectors.
Understanding the principle behind Halbach arrays can assist in designing more effective and efficient systems while reducing waste and optimizing resources, ultimately leading to a competitive edge in various fields.

What types of Halbach arrays exist and when should each be used?

Various Halbach array configurations, each suited for distinct applications, can optimize performance across different industrial needs.

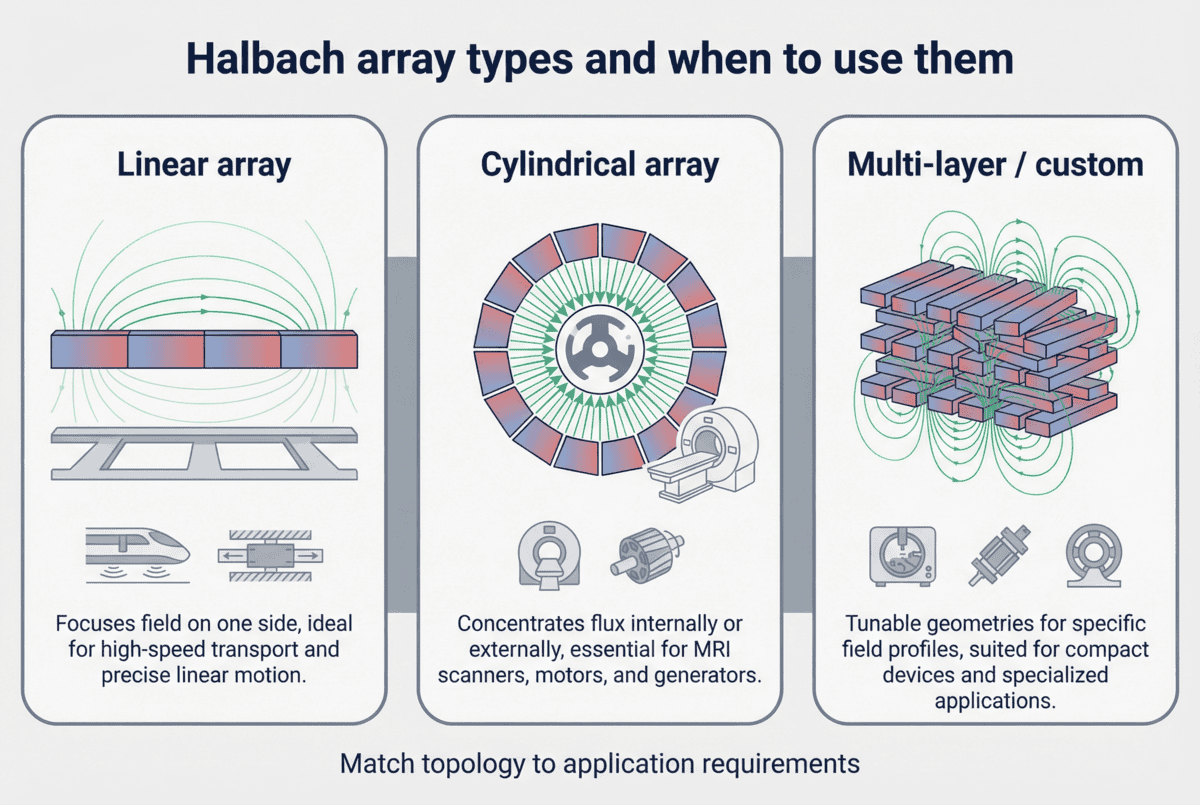

Linear 1D arrays are common in systems where a long, consistent magnetic field is required, while cylindrical arrays fit applications like MRI and rotor components, providing uniformity crucial for precise operations.

Linear Halbach arrays⁵ extend along a single axis, providing a uniform magnetic field ideal for maglev trains and linear motors. They execute consistent field applications with potential limitations in field strength compared to more complex configurations.
Cylindrical (or ring) Halbach arrays⁶ wrap around a central axis, creating a homogenous magnetic field inside the cylinder favorable for MRI scanners. The internal field's uniformity is essential for achieving the high-quality imaging standards required in medical diagnostics, which extensively rely on precise magnetic guidance.
Multi-segment and multi-layer arrays provide customization by altering field strength and orientation layer by layer, optimizing performance in complex environments.
Finally, hybrid or modified Halbach arrays, such as finite-length or truncated designs, tailor to applications where standard shapes may be restrictive. This allows adaptability across a range of situations from compact devices to expansive industrial setups.

What are the principal applications and performance benefits?

Halbach arrays enhance efficiency, reducing energy costs and improving product lifecycles, particularly in demanding environments.

In motors and generators, Halbach arrays elevate torque density⁷ and reduce cogging torque⁸, leading to more efficient operations compared to traditional designs. Medical imaging systems like MRIs utilize them to achieve better field strength and homogeneity.

In motors and generators, Halbach arrays can increase torque density significantly by aligning magnetic flux to enhance interactions. This results in smoother operation with less energy lost to heat, thus improving efficiency and reducing operational costs. They also minimize cogging torque, leading to quieter and more reliable machines.
In medical imaging, particularly MRI systems⁹, Halbach arrays contribute to creating highly homogeneous magnetic fields. This consistent field strength allows for clearer imaging, vital for accurate diagnostics. Low-field MRIs that incorporate these arrays are more compact and less costly.
Magnetic levitation systems, such as those in Inductrack technologies¹⁰, depend on Halbach arrays for efficient operation. The arrays facilitate strong lift and minimal energy drag, optimizing performance and extending the lifespan of system components.
Moreover, in applications like magnetic couplings, bearings, and sensors, Halbach arrays enable highly accurate and contactless torque transmission, vital for precision tools and devices. These innovations highlight the arrays' substantial influence in advancing industrial technologies, providing better value and performance.

Conclusion

Halbach arrays offer unique benefits across industries by enhancing efficiency and enabling customized magnetic solutions. Explore simulation tools, supplier options, and begin prototyping today.
