Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.

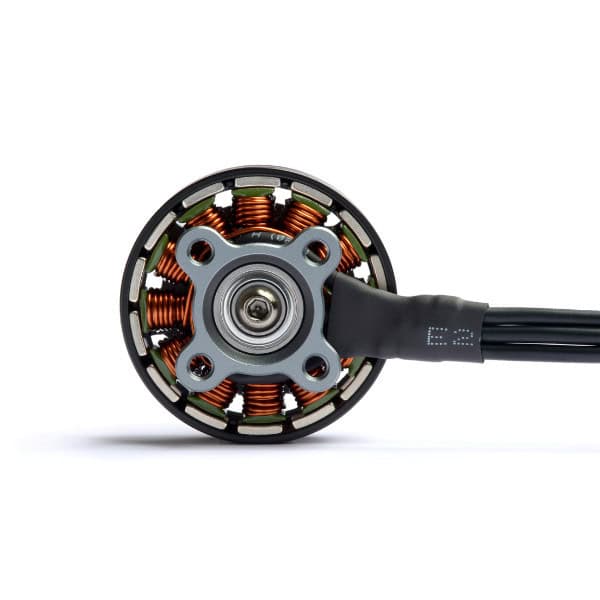

Product ID:
MR2812
Basic Parameters
Motor Size | Slot Pole Number |
33.6*41.7 | 14 |
Rotor Dynamic Balance | Propeller Mounting Hole |
|---|---|
≤5mg | M5 |
Motor Mounting Hole | Shaft |
D19 M3*4 | 5mm |
Wire Length | / |
260mm | / |
Technical Parameters
KV Value | Phase Resistance |
925 | 69mΩ |
1155 | 47mΩ |
No-Load Current | Maximum Thrust |
|---|---|
1.35A/10V | 2.9kg |
1.85A/10V | 3kg |
Maximum Current | Maximum Power |
50.5A | 1260W |
53.5A | 1350W |
Motor Weight | Boxed Weight |
75g | 92g |
75g | 92g |
Technical Drawing
