Superior Explosion-Resistant Performance: Featuring a unique oxidation design for an exceptional flying experience.
Maximized Hollow Design: Ultra-lightweight construction with quick heat dissipation.
Innovative Motor Core Design: Equipped with 12N14P multi-slot, multi-stage technology for enhanced efficiency.
Aerospace-Grade Aluminum Material: Provides higher strength, ensuring better safety.
Premium Imported Bearings: Ensures more stable rotation and better shock resistance.
High-Performance, Heat-Resistant Arc Magnets: Performance improved by 5%, designed to withstand high temperatures.

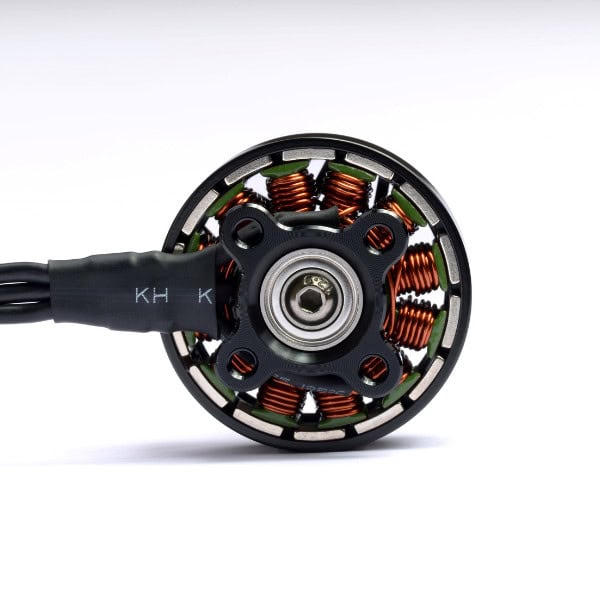

Product ID:
MR2807
Basic Parameters
Motor Size | Slot Pole Number |
33.7*35.8 | 14 |
Rotor Dynamic Balance | Propeller Mounting Hole |
|---|---|
≤5mg | M5 |
Motor Mounting Hole | Shaft |
D19 M3*4 | 5mm |
Wire Length | / |
260mm | / |
Technical Parameters
KV Value | Phase Resistance |
1300 | 77mΩ |
1500 | 61mΩ |
No-Load Current | Maximum Thrust |
|---|---|
1.06A/10V | 2.4kg |
1.25A/10V | 2kg |
Maximum Current | Maximum Power |
45.5A | 1060W |
47.5A | 1090W |
Motor Weight | Boxed Weight |
48g | 65g |
48g | 65g |
Technical Drawing
