Understanding and Minimizing Eddy Current Losses in SmCo and NdFeB Magnets
Eddy current losses are a significant concern in rotating machinery, especially when using metal-based permanent magnets like Samarium-Cobalt (SmCo) and Neodymium-Iron-Boron (NdFeB). Core losses, which include both eddy current losses and hysteresis losses, must be carefully considered during the design of electrical machines to ensure efficient performance. These materials, while excellent in magnetic performance, are also highly conductive, which can lead to undesirable heat generation due to eddy currents. This article delves into the causes of eddy current losses, explains the skin effect, and offers practical strategies to mitigate these losses, ensuring the longevity and efficiency of your magnetic systems.

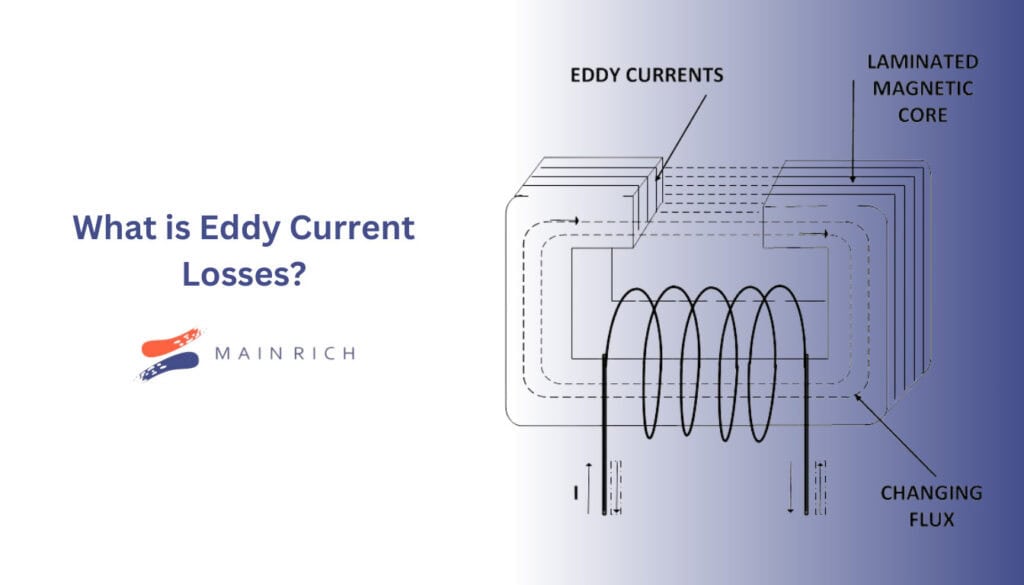

What Are Eddy Currents?
Eddy currents are loops of electric current induced within conductors by a changing magnetic field. This phenomenon occurs in rotating machinery, such as motors and generators, where the constant motion and alternating magnetic fields can induce these currents within the magnetic materials themselves. The presence of eddy currents in conductive materials like SmCo and NdFeB can lead to significant energy losses in the form of heat, known as eddy current loss, which can compromise the efficiency and longevity of the machinery.
The concept of eddy currents is closely tied to Faraday’s Law of Induction, which states that a changing magnetic field within a closed loop of conductive material will induce an electromotive force (emf). This induced emf drives currents within the material, creating a circular flow pattern. Eddy currents flow within conductive materials due to these changing magnetic fields. These circulating currents, or eddy currents, are particularly problematic in applications where the magnetic field is constantly changing, such as in rotating machinery. The result is that these currents can lead to excessive heat generation, increased energy consumption, and even potential damage to the magnetic materials over time.
In addition, hence the induced emf leads to the creation of eddy currents, contributing to energy losses.
The Skin Effect: A Key Contributor to Eddy Current Losses
One of the most significant contributors to eddy current losses is the skin effect. The skin effect is a phenomenon where alternating current (AC) tends to flow near the surface of a conductor, rather than uniformly throughout its cross-section. This effect becomes more pronounced as the frequency of the alternating current increases. As the current is pushed closer to the surface of the conductor, the effective cross-sectional area available for current flow is reduced, leading to increased resistance and, consequently, greater energy losses.
The skin effect is particularly relevant in the context of eddy current losses because it exacerbates the concentration of induced currents near the surface of the magnetic material. This means that the eddy currents are more intense in this region, leading to higher levels of heat generation and energy dissipation. In an iron core placed in a magnetizing coil, eddy currents are generated within the solid iron core, leading to energy wastage as heat and inhibiting the penetration of magnetic flux. In materials like SmCo and NdFeB, which are already highly conductive, the skin effect can significantly impact the efficiency of the machinery, making it a critical factor to consider in the design and optimization of magnetic systems.
Factors Influencing Eddy Current Losses and Magnetic Flux
Eddy current losses are influenced by several key factors, each of which plays a critical role in determining the overall impact on the magnetic core and the magnetic system. Magnetic losses include both eddy current loss and hysteresis loss, which arise from the magnetic paths in motor cores and contribute to energy waste in the form of heat.
Magnetic Field Variation: The rate at which the magnetic field changes is one of the primary drivers of eddy current losses. A rapidly changing magnetic field induces stronger eddy currents within the conductive material, leading to greater energy losses. A varying magnetic field generates eddy currents within conductive materials, which can lead to various physical effects. In applications such as electric vehicles and elevators, where speed control is essential, the magnetic field can change rapidly, making it crucial to manage eddy current losses effectively.
Conductor Motion: The speed at which the conductor moves through the magnetic field also affects the magnitude of the eddy currents. Faster motion through the magnetic field induces stronger eddy currents, which can lead to increased heat generation and energy loss. This is particularly relevant in rotating machinery, where the relative motion between the magnetic field and the conductive material is constant.
Material Properties: The geometry, magnetic permeability, and electrical resistivity of the material are critical factors in determining the extent of eddy current losses. Materials with higher magnetic permeability or lower electrical resistivity are more prone to eddy current losses. In contrast, materials with higher resistivity can help mitigate these losses by reducing the intensity of the induced currents.
Magnetic Flux Density: The magnetic flux density, or the amount of magnetic field passing through a given area, also influences eddy current losses. Higher magnetic flux densities can lead to stronger eddy currents, resulting in greater energy dissipation and heat generation. This is particularly important in applications where strong magnetic fields are required for efficient operation.
Lamination and Material Thickness: The use of laminated cores or thin layers of material can help reduce eddy current losses by interrupting the path of the circulating currents. By dividing the core material into thin sheets that are insulated from each other, the cross-sectional area available for eddy currents is minimized, reducing the overall energy loss.
Frequency of the Alternating Magnetic Field: The frequency of the alternating magnetic field is directly proportional to the intensity of the eddy currents. Higher frequencies result in more significant eddy current losses, as the induced emf and circulating currents become stronger. This is why applications that operate at high frequencies, such as certain types of transformers and inverters, are particularly susceptible to eddy current losses.
Strategies to Reduce Eddy Current Losses
To minimize eddy current losses in permanent magnets, several techniques can be employed:
Magnet Segmentation and Shielding: One of the most effective strategies for reducing eddy current losses is magnet segmentation and shielding. By dividing the magnet into smaller segments or surrounding it with shielding columns, the path for eddy currents is interrupted, reducing the overall losses. This approach is particularly useful in applications where large magnetic fields are required, as it helps to minimize the impact of the skin effect and reduce the intensity of the circulating currents.
Using Bonded Magnets: Bonded magnets, which incorporate binders with high resistivity, can significantly reduce eddy current losses compared to sintered magnets. The use of bonded magnets is particularly beneficial in applications where heat generation and energy loss are critical concerns. However, it is important to note that this method may limit the magnet’s power and maximum operating temperature, so it must be carefully considered based on the specific requirements of the application.
Enhancing the Resistivity of Sintered Magnets: Increasing the resistivity of sintered magnets is a direct way to reduce eddy current losses. This can be achieved by adding high-resistivity powders (such as Al₂O₃) or coating the magnets with insulating layers like SiO₂. These techniques help to reduce the intensity of the induced currents by increasing the resistance to current flow within the magnetic material. However, it is essential to balance resistivity and magnetic performance, as increasing the resistivity may also impact the overall magnetic properties of the material.
Optimizing Core Material and Design: The selection of the core material and its design plays a crucial role in minimizing eddy current losses. Materials with higher resistivity and lower magnetic permeability are less prone to eddy current losses, making them ideal for applications where energy efficiency is a priority. Additionally, optimizing the design of the core, such as by using laminated cores or adjusting the thickness of the material, can help to reduce the overall energy loss and improve the efficiency of the system.
Using Ferrite Cores: For applications involving higher frequencies, ferrite cores are preferred due to their higher resistivity and lower eddy current losses compared to metallic cores. Ferrites are particularly useful in high-frequency transformers and inductors, where the reduction of eddy current losses is critical to maintaining efficient operation.
Addressing Hysteresis Losses: Besides eddy currents, hysteresis losses also contribute to the overall energy loss in magnetic systems. Hysteresis losses
Advanced Techniques for Reducing Eddy Current Losses
In addition to the basic strategies outlined above, several advanced techniques can be employed to further reduce eddy current losses:
Thin Film Coating: Applying a thin film coating of insulating material to the surface of the magnetic material can help to reduce eddy current losses by increasing the resistance to current flow. This technique is particularly useful in applications where high frequencies are involved, as it helps to mitigate the skin effect and reduce the intensity of the circulating currents.
Advanced Laminated Core Design: By optimizing the design of laminated cores, it is possible to further reduce eddy current losses. This can be achieved by adjusting the thickness of the laminations, the type of insulating material used, and the overall design of the core. Advanced laminated core designs are particularly useful in high-frequency applications, where the reduction of eddy current losses is critical to maintaining efficient operation.
Use of Composite Materials: Composite materials, which combine high-resistivity binders with magnetic particles, can be used to create magnets with reduced eddy current losses. These materials offer a balance between magnetic performance and resistivity, making them ideal for applications where energy efficiency and heat management are critical concerns.
Implementing Active Cooling Systems: In some high-power applications, active cooling systems can be used to manage the heat generated by eddy current losses. By actively cooling the magnetic material, it is possible to reduce the impact of heat generation and maintain efficient operation. However, this approach may require additional infrastructure and energy consumption, so it must be carefully considered based on the specific requirements of the application.
Innovative Material Development: Ongoing research into new magnetic materials with higher resistivity and lower magnetic permeability continues to offer potential solutions for reducing eddy current losses. These materials, which are designed to minimize energy loss while maintaining high magnetic performance, represent the future of efficient magnetic systems.
Conclusion
Understanding and managing eddy current losses are critical for the efficient design of rotating machinery that uses permanent magnets. By carefully considering the factors that influence these losses and implementing appropriate strategies, it is possible to enhance the performance and longevity of magnetic systems, whether in electric vehicles, industrial motors, or other applications.
