What Are Tiny Neodymium Magnets and Why Are They Essential for Precision Applications?

Tiny magnets may be small, but picking the wrong one can break your product or delay your launch. I’ve seen it happen more than once.

Tiny neodymium magnets are essential because they offer powerful magnetic strength in extremely small dimensions, making them perfect for high-precision applications like medical devices, electronics, and sensors.

You don’t just choose a small magnet based on size. Engineers and buyers who handle high-precision projects must match specs, tolerances, coatings¹, and pull force² to exact requirements. Let’s dive into what really matters when choosing micro neodymium magnets.

What Size Range Qualifies as "Tiny" Neodymium Magnets?

You don’t want to assume what counts as “tiny.” It’s not just about how it looks to the eye.

Tiny neodymium magnets generally refer to magnets smaller than 5mm in diameter or thickness, often ranging from 0.5mm to 4mm depending on shape and application.

How small is too small?

When I work with clients in electronics or medical device development, they often need magnets under 3mm. For instance, in hearing aids or miniature sensors, even a 2mm neodymium disc can deliver more than 100g of pull force. Here’s a rough guide:

Shape	Typical “Tiny” Size Range
Disc	0.5mm – 4mm diameter
Cylinder	1mm – 5mm length, 0.5mm diameter
Block	1mm × 1mm × 1mm to 5mm³
Ring	2mm OD with 0.5mm ID

These are not toy-grade magnets. Even at micro scale, N35–N52 neodymium grades³ produce strong magnetic fields⁴. That’s why applications like camera autofocus systems or surgical navigation tools rely on them.

What Are the Key Specifications to Consider When Selecting Micro Neodymium Magnets?

Many engineers I’ve worked with focus only on dimensions. That’s not enough.

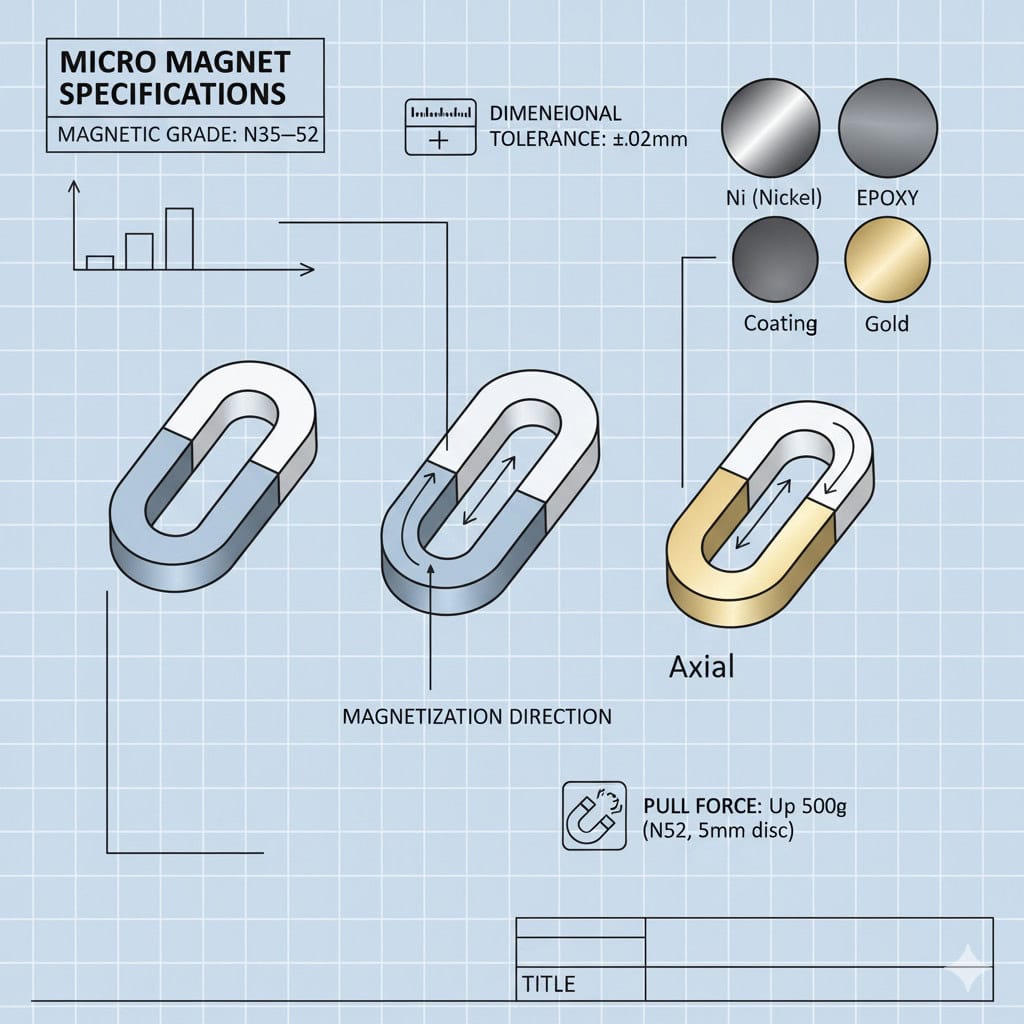

The key specifications for micro neodymium magnets include grade, tolerance, coating, magnetization direction, and pull force.

Get the spec right or risk product failure

Let’s look at the main specs you’ll need to confirm before moving to prototyping:

Parameter	Why It Matters
Grade (N35–N52)	Higher grades deliver stronger force in same dimensions
Tolerance5 (±0.02mm)	Precision matters in assemblies; poor tolerance = misfits
Coating (Ni, Epoxy, Au)	Prevents corrosion, critical for medical/electronics
Magnetization Direction6	Affects field orientation—critical in sensor design
Pull Force	Determines holding or interaction strength

Some clients have told me they had to redesign plastic housings because the pull force was too strong or the tolerance wasn’t tight enough. In tight-fitting electronic cases, even 0.05mm deviation can jam the entire unit.

What Industries and Applications Commonly Use Tiny Neodymium Magnets?

If your part needs micro precision, chances are, these magnets are already in it.

Tiny neodymium magnets are widely used in electronics, medical devices, automotive sensors, aerospace systems, and wearable technologies.

Where small meets critical

Here are a few applications I’ve personally supported:

Industry	Example Use Case
Electronics	Smartphone vibration motors, earbuds, reed switches
Medical	Hearing aids, surgical tool positioning
Automotive	Gear position sensors, mini actuators
Aerospace	Precision control surfaces, sensor locking
Wearables	Magnetic charging connectors, clasp systems

The common thread? These parts need to work perfectly, every time, without failure. And the magnets inside them must maintain their performance over thousands of cycles, often in sensitive or sealed environments.

What Are the Manufacturing Challenges with Tiny Neodymium Magnets?

I often get asked: “Why do small magnets have longer lead times or higher MOQs?”

Micro neodymium magnets are hard to manufacture due to machining precision, brittleness of NdFeB material, and quality control at micro scale.

Why it’s not just cutting smaller blocks

Here’s what makes production more complex:

• Fragility: At sub-2mm sizes, neodymium chips easily during grinding.
• Precision: Tolerances often demand ±0.02mm or tighter, which needs diamond cutting and CNC lapping.
• Batch yield: One crack in sintering ruins the whole strip.
• Magnetization: Fixtures for tiny parts must be custom-built.

I’ve worked with clients who needed 1mm³ cubes in large volumes, but yields were under 70% until we refined the jig design and magnetization setup. Expect slightly higher costs and longer QA cycles—but in return, you get consistency.

How Do Coating Options Affect Performance in Miniature Magnets?

Even the strongest micro magnet is useless if it corrodes or delaminates in your device.

Coating protects micro magnets from oxidation and mechanical wear—critical for longevity and performance.

Choose wisely based on your environment

Here’s a comparison table I often send to clients:

Coating	Best For	Notes
Ni-Cu-Ni	General use, good appearance	Default, but not waterproof
Epoxy	Humid or marine environments	Offers best protection, wears faster
Gold (Au)	Medical or skin contact	Biocompatible, premium cost
Parylene	Medical implants	Ultra-thin, low friction

Tip: If your application involves adhesives or ultrasonic welding, inform your supplier. Some coatings affect bond strength or degrade under ultrasonic heat.

What Safety Considerations Apply to Tiny Neodymium Magnets⁷?

They’re small, yes. But don’t underestimate the risk.

Tiny magnets pose choking hazards, pinch risks, and can interfere with medical devices like pacemakers if mishandled.

Real risks from tiny parts

Here are a few safety rules we always follow in production and packaging:

• Child-proof packaging if shipped to consumer-facing assembly lines
• Warnings on interference for pacemaker-sensitive workplaces
• Avoid inhalation risk during machining—NdFeB dust is toxic
• Proper demagnetization shielding during air freight

A buyer from a medical startup once had their packaging flagged at customs because the label didn't indicate magnetism. Avoidable—if you follow proper SDS and shipping declaration practices.

How Do You Source Tiny Neodymium Magnets for Industrial Applications?

You don’t want to experiment when the margin for error is 0.01mm.

Source tiny magnets from experienced manufacturers with tight QA processes, ability to do custom tooling, and knowledge of precision applications.

What I recommend to new clients

Here’s a checklist I often give to product teams:

• Confirm ISO 9001 and RoHS compliance
• Ask for CMM inspection reports for micro parts
• Discuss magnetization direction early
• Test sample pull force with air gap simulations
• Choose suppliers who can grind, coat, and test in-house
• Verify whether the supplier can meet the policy requirements for export⁸.

At Mainrich Magnets, we’ve delivered tiny magnets for robotic arms, endoscopic tools, and sensor modules across six continents. Our precision workshop is built to handle parts as small as 0.5mm with full traceability.

Conclusion

Tiny neodymium magnets may be small, but they demand serious engineering, precision, and care—because in high-performance systems, there’s no room for error.
