Most people assume stronger magnets are always better—but using the wrong type can break your product or your budget.
Alnico magnets are heat-resistant and durable, while neodymium magnets are much stronger and smaller. Each suits different industrial needs depending on strength, stability, and cost.
One of the most frequent questions from my client is: “Should we go with Alnico1 or neodymium magnets2?” The answer is never one-size-fits-all. It depends on your priorities—heat resistance, cost, magnetic strength, or corrosion risk. Let’s break it down together.
What Are Alnico Magnets? Composition and Key Properties
Some engineers still default to Alnico because it’s a time-tested material—but do they know what makes it unique?
Alnico magnets are made from aluminum, nickel, and cobalt, offering strong temperature resistance and excellent durability.
Alnico was one of the earliest industrial magnet3 materials developed in the 1930s. It gets its name from its key ingredients: ALuminum, NIckel, and CObalt4. Some formulations also include copper and iron. This material became popular in military and aviation use during World War II—and it’s still relevant today for applications that require temperature stability or rugged mechanical strength.
Key Properties of Alnico Magnets
| Property | Description |
|---|---|
| Magnetic Strength5 | Moderate (lower than NdFeB) |
| Temperature Resistance | Up to 550°C or higher |
| Mechanical Strength | Excellent, resistant to demagnetization6 |
| Corrosion Resistance7 | Moderate, usually coated or plated |
| Manufacturing Form | Easily cast or sintered into complex shapes |
Alnico magnets are ideal for applications exposed to high heat, such as electric guitar pickups, speed sensors, or aerospace components. Their magnetic field is stable and doesn’t degrade quickly over time. However, their lower coercivity makes them easier to demagnetize if not handled carefully.
What Are Neodymium Magnets? Composition and Key Properties
Everyone talks about how strong neodymium magnets are—but few realize they come with real trade-offs.
Neodymium magnets are made from rare-earth elements like neodymium, iron, and boron. They offer unmatched strength but need protection from heat and corrosion.
I work with neodymium magnets every day. They’re the most powerful permanent magnets8 commercially available. Developed in the 1980s, NdFeB magnets revolutionized industrial design because they packed so much power into a small size. That’s a big reason why they’re everywhere now—from MRI machines to drone motors to smartphones.
Key Properties of Neodymium Magnets
| Property | Description |
|---|---|
| Magnetic Strength | Extremely high (up to 1.4 Tesla9) |
| Temperature Resistance | Varies by grade (80°C–200°C typical, with special grades up to 230°C) |
| Mechanical Strength | Brittle and prone to chipping |
| Corrosion Resistance | Poor, needs nickel/zinc/epoxy coating |
| Manufacturing Form | Sintered or bonded, mostly in simple shapes |
Despite their strengths, neodymium magnets are sensitive. Without proper surface treatment, they corrode quickly in humid or salty environments. And without thermal stabilization10, they lose magnetism under heat stress. That’s why we often suggest special grades like N48SH or N52UH for motors or sensors under high temperatures.
How Do Alnico and Neodymium Magnets Compare in Magnetic Strength?
Buyers often assume neodymium is always better due to strength—but is it necessary for your use case?

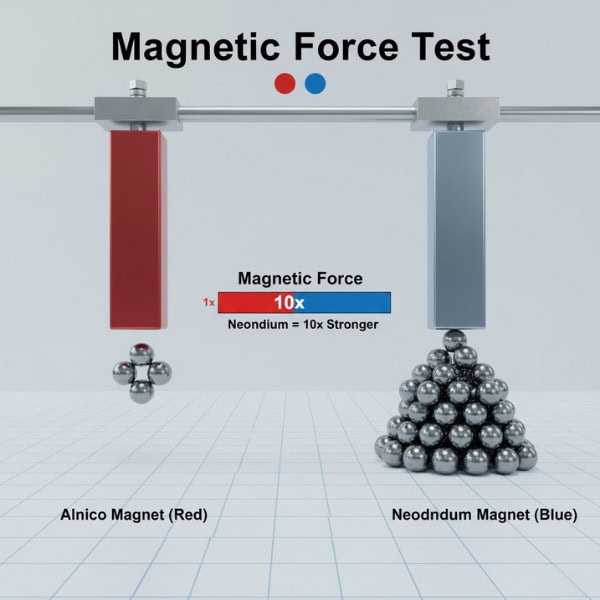

Neodymium magnets are up to 10x stronger than Alnico magnets in the same volume. Alnico offers stable but weaker magnetic fields.
This is usually the biggest dealbreaker in material selection. If your application requires compact size and maximum power—like in robotics or EV motors—neodymium is the default choice. However, if space isn’t a constraint and thermal stability is key, Alnico still holds its ground.

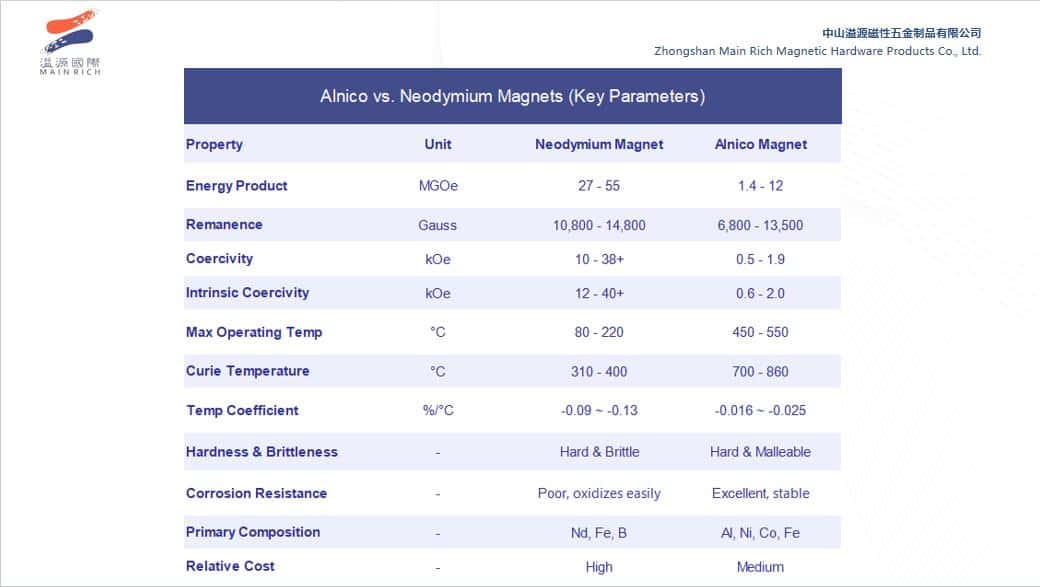

Side-by-Side Strength Comparison
| Property | Alnico Magnets | Neodymium Magnets |
|---|---|---|
| Max Energy Product (BHmax) | ~5.5 MGOe | Up to 52 MGOe |
| Remanence (Br) | ~1.25 Tesla | Up to 1.4 Tesla |
| Coercivity (Hcj) | Low (~50 kA/m) | Very high (≥800 kA/m) |
If you’re replacing ferrite11 or Alnico magnets with NdFeB in an existing product, keep in mind: smaller size doesn’t just mean less weight—it may also affect how the magnetic field interacts with nearby components. Always test in your real environment.
What Are the Temperature and Corrosion Resistance Differences?
High heat and harsh environments often destroy neodymium—unless you’re ready to pay more for protection.
Alnico magnets are naturally heat-resistant and less prone to demagnetization, while neodymium magnets need special grades and coatings.
This comes up often with clients who work in automotive or heavy machinery. Alnico holds magnetic properties at 500°C or more, whereas standard neodymium starts to fail at 80°C. You can pay more for high-temp grades like N48H or N42SH, but that eats into your cost margin.
Temperature and Corrosion Resistance Chart
| Feature | Alnico Magnets | Neodymium Magnets |
|---|---|---|
| Max Operating Temp | 500–550°C | 80–230°C (grade dependent) |
| Demagnetization Resistance | High | Medium to High (with grade) |
| Rust / Corrosion Risk | Moderate (low iron) | High (needs coating) |
In marine or outdoor use, we often recommend avoiding neodymium unless you have strong sealing or epoxy coating. Even a tiny crack in the plating can ruin the magnet over time.
Which Magnet Type Is More Cost-Effective for Industrial Use?
Budget-conscious buyers ask this a lot: Is it worth paying extra for stronger magnets?
Alnico magnets are cheaper per unit volume, but neodymium offers better performance-per-dollar in high-strength use cases.
Let me be real with you—neodymium prices are volatile. They depend on rare-earth12 supply chains, especially from China. Alnico is more stable in cost. However, because neodymium magnets are smaller and stronger, you may need fewer of them. This can lower total system costs, especially in compact electronics or motors.

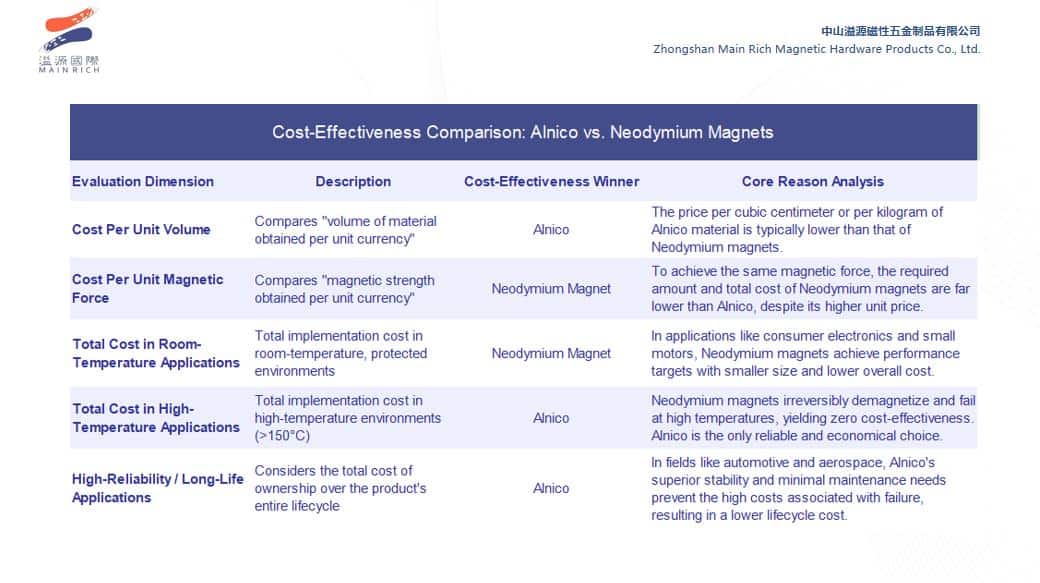

Cost Effectiveness Breakdown
| Factor | Alnico Magnets | Neodymium Magnets |
|---|---|---|
| Raw Material Cost | Lower | Higher (Nd, Dy, Tb involved) |
| Volume Needed | Larger | Smaller |
| Machining & Handling | Easier | Brittle, needs care |
| Lifecycle Cost | Lower in high-temp systems | Lower in compact, high-performance systems |
When I work with procurement teams, we run a total cost of ownership analysis. Sometimes, the upfront price is deceiving. Think about replacement frequency, environmental wear, and engineering labor—then decide.
read this magnets procument guide13 to get more info.
What Are Common Applications for Alnico vs Neodymium Magnets?
I always tell clients: start with your application, not the magnet. That simplifies the decision fast.
Alnico magnets are ideal for sensors, instruments, and high-heat equipment. Neodymium suits motors, speakers, robotics, and compact devices.
Here’s how we usually break it down in client meetings:

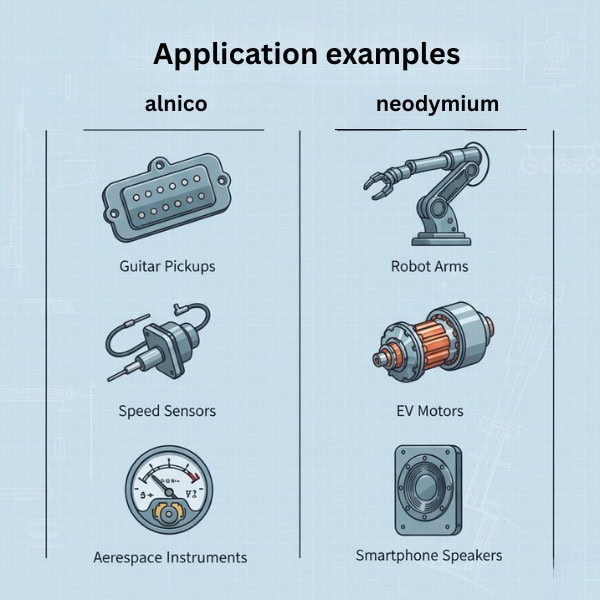

Industrial Applications Comparison
| Application | Best Fit Magnet | Why? |
|---|---|---|
| Automotive speed sensors | Alnico | High thermal stability |
| EV and robotics motors | Neodymium | Compact + powerful |
| Acoustic devices (guitar pickups) | Alnico | Stable magnetic field |
| MRI or medical equipment | Neodymium (graded) | Strong field + small size |
| Outdoor machinery | Alnico or Coated NdFeB | Depends on corrosion exposure |
| High-precision measuring tools | Alnico | Predictable, stable field |
The best advice I give: test both materials early in your product cycle. Don’t wait until pre-production. Your test data will often surprise you.

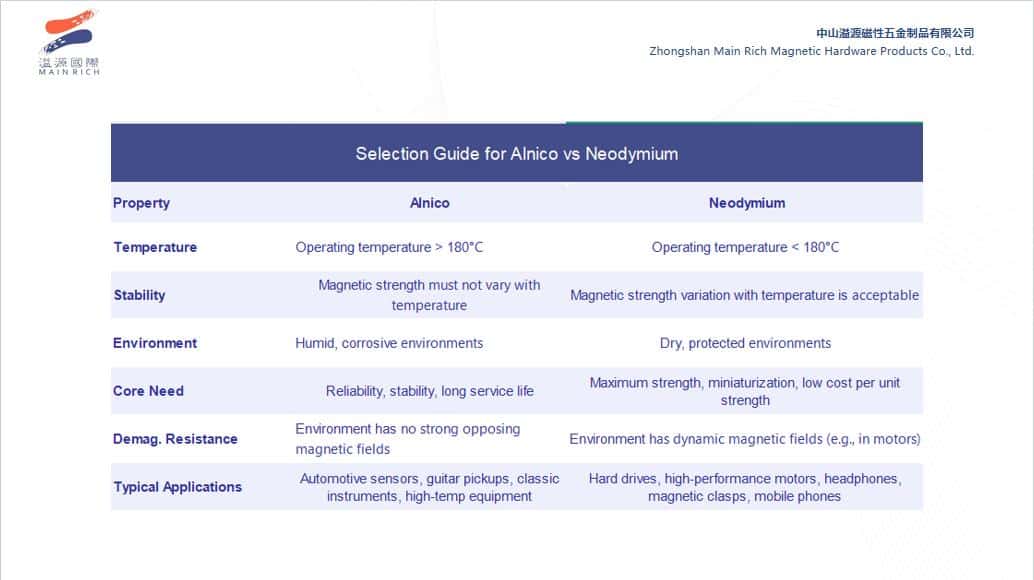

How to Choose the Right Magnet for Your Manufacturing Needs?
Still not sure which one to pick? Here’s a shortcut I give all my clients.
If you need power in a small space—go neodymium. If your environment is hot, harsh, or needs stability—go Alnico.
You can start by asking 3 key questions:
- What’s the operating temperature?
- Do you need maximum strength or field stability?
- Will corrosion or moisture be a factor?
Once you answer those, the best-fit material often becomes obvious. If not, send us your specs. We’ve designed custom magnetic solutions for everything from underwater sensors to space robotics. I’m happy to help you do the same.
Conclusion
Choose Alnico for heat and durability. Choose Neodymium for compact power. Your application decides.
