I often see people panic when their magnets show signs of rust. They want to protect the magnetic strength. I tell them coatings are the key.

Magnet coatings solve corrosion problems¹. They act like armor for neodymium magnets. These coatings ensure stable performance and a longer life span.

I believe a simple approach helps. I will answer common questions about why magnets need coatings, the different coating types, and how they are applied. Let’s begin.

Why Are Magnet Coatings Necessary?

I have met clients who found their neodymium magnets² covered in rust. They wondered why it happened so fast. The short answer is that neodymium magnets are vulnerable. They need coatings to block oxygen and moisture.

Protecting neodymium magnets is essential. These magnets corrode easily in damp or humid places. A coating forms a barrier that saves the magnet’s strength and prevents damage.

The Science Behind Corrosion

Neodymium magnets (often called NdFeB) contain iron, neodymium, and boron. Iron reacts quickly with water or humidity. When I started experimenting with uncoated magnets, I saw rust appear in days. Those tiny pores in sintered NdFeB speed up oxidation. Once rust starts, it can spread inside the magnet structure. That leads to crumbling or a total loss of magnetic power.

I have noticed that even small temperature swings or mild chemical exposure can trigger corrosion. Some factory floors and warehouse spaces have humidity or chemicals in the air. That is enough to damage the magnets if they have no protective coating³. When the surface begins to rust, it becomes a domino effect. The magnet can chip or break under mechanical stress. Over time, you end up with a weak or useless magnet.

Coatings are a defense barrier. A well-applied coating stops water and air from entering the magnet’s pores. This helps keep magnetic properties stable and prolongs the part’s working life. Let me illustrate the risks and solutions in a simple table:

A good coating can defend against these threats. When I pick the right coating for a project, I consider the magnet’s environment, budget, and durability needs. In many cases, a proper coating is the deciding factor between a magnet that fails early and one that serves reliably for years.

What Are the Common Types of Magnet Coatings?

I get this question from engineers and project managers who want the “best” coating. I answer that each coating excels in different situations. Zinc, nickel, epoxy, and phosphating are the main options. There is no single best choice for every use.

Magnet coatings keep moisture and chemicals away. Different finishes also affect cost, appearance, and how well the magnet tolerates rough handling.

Comparing Popular Coatings

I like to group coatings into metal platings, polymer coatings, and chemical conversion layers. Each category has pros and cons. To help you understand, here is a table that outlines some main features:

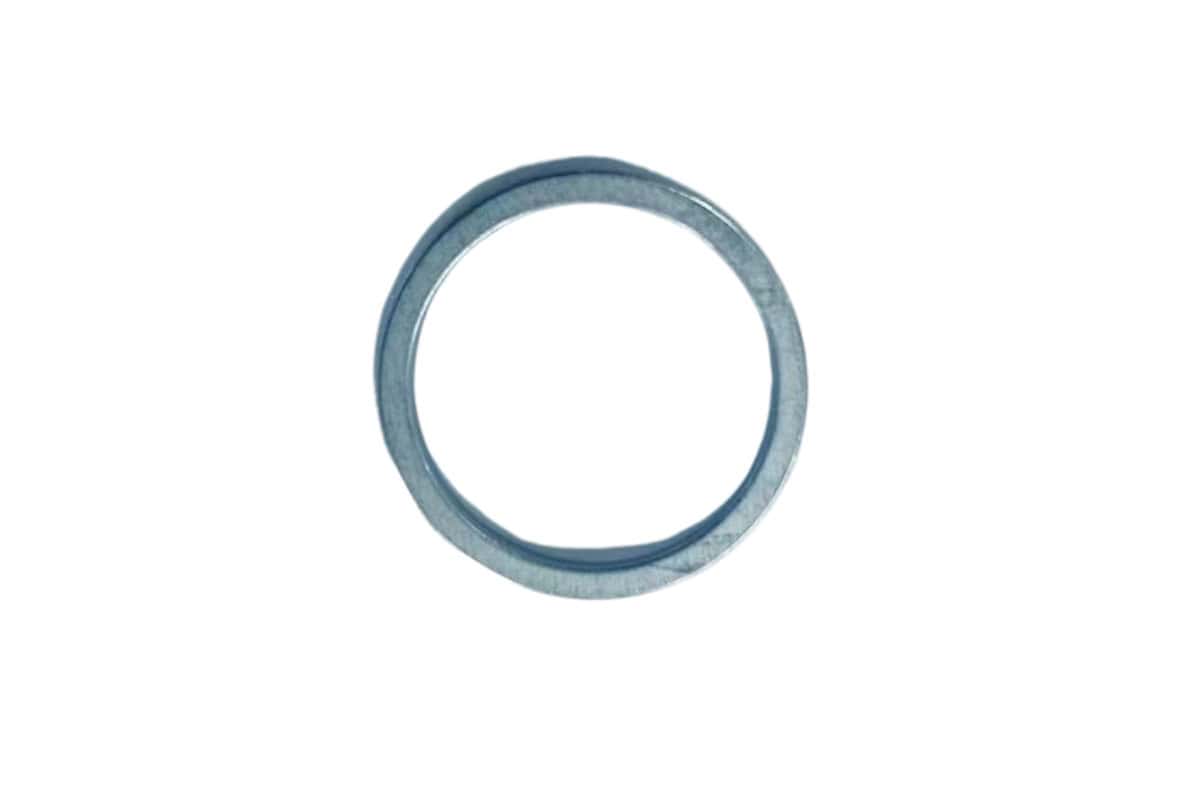

Zinc Plating

Zinc plating is cost-effective. It offers moderate protection in less hostile environments. Sometimes zinc is applied in a colorful finish, known as color zinc. I have used zinc when the magnets only face normal indoor conditions. Over time, zinc can turn powdery, which affects looks but not always performance. Still, for harsh places, I advise a better coating.

Nickel (Ni-Cu-Ni)⁴

Nickel plating is popular and versatile. I have recommended it for indoor or outdoor products that need a sleek finish. The triple-layer approach—nickel, copper, then nickel again—helps seal the magnet. If you expect mild humidity or moderate chemicals, nickel is a solid choice. Black nickel is an option for a darker appearance. But watch for pinholes or scratches, which can lead to corrosion starting beneath the plating.

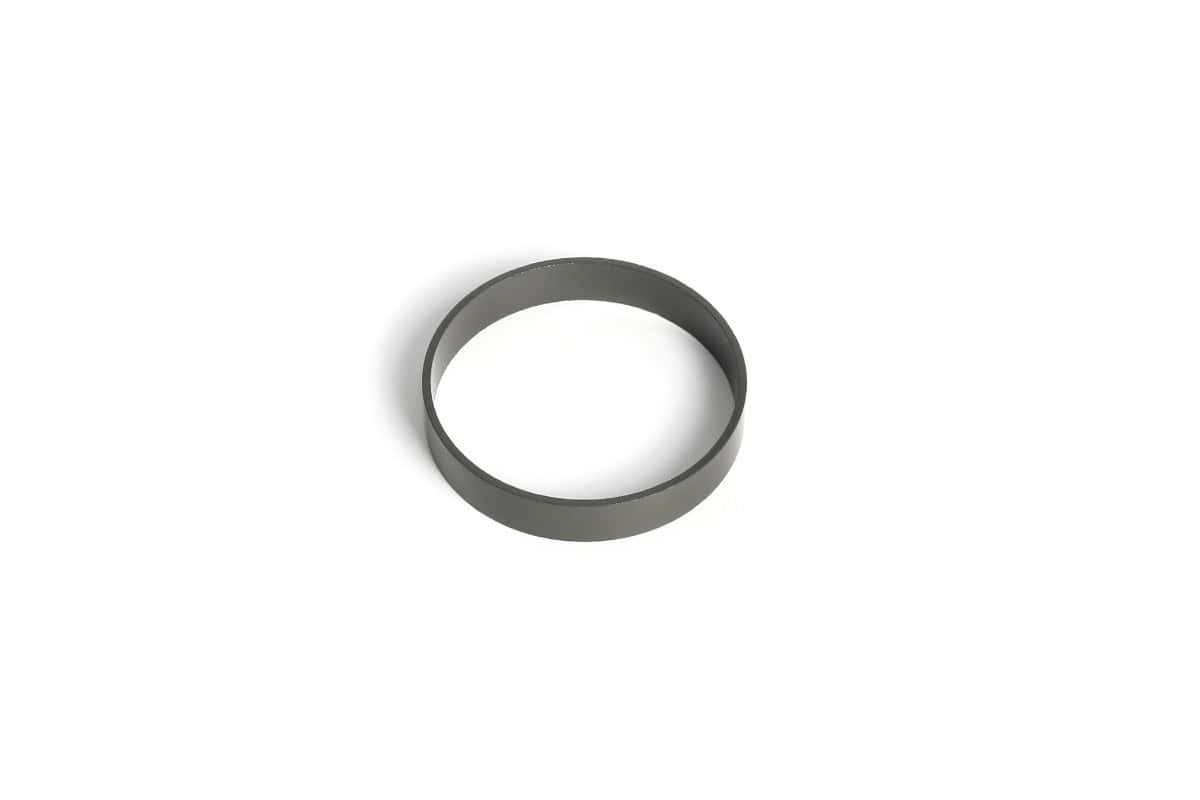

Epoxy

Epoxy⁵ stands out when you want top-tier rust protection. It is often placed over a nickel base, leading to a four-layer system (Ni-Cu-Ni-Epoxy). Epoxy resists water and many chemicals. In marine or outdoor setups, it shields magnets effectively. But epoxy can scratch more easily than metal. If the magnet might be hit or rubbed, any scratch can expose the metal underneath. I typically suggest epoxy if the magnet is enclosed in a device or protected from mechanical collisions.

Phosphating

Phosphating is a chemical conversion that forms a thin phosphate film on the magnet. It is cheaper and simpler than metal plating. I have seen it used for storage, because it stops surface rust. It also serves as a pre-treatment, so you can later apply zinc or nickel plating without contamination. On its own, phosphating is not as robust as nickel or epoxy for daily use. But for short-term protection, especially on stored magnets, it offers a high return on investment.

Let’s compare them more directly:

When deciding on a coating, I look at the product’s environment, budget, and expected life cycle. If the magnet is sealed inside a water pump, epoxy might be best. For a simple indoor application, zinc could be enough. For me, the right choice always balances cost with performance needs.

How Do You Coat a Magnet?

Many ask if they can coat magnets at home. The short response is that professional help is advised. A successful coating requires accurate cleaning, uniform deposition, and strict quality checks.

Magnet coatings typically use electroplating⁶ (for zinc or nickel), spray or dip methods (for epoxy), or immersion (for phosphating). Each step must be controlled to achieve consistent thickness and adhesion.

The Coating Process in Detail

I have watched entire production lines dedicated to magnet coatings. The steps are usually:

1. Surface Cleaning
2. Pre-Treatment
3. Main Coating Application
4. Quality Inspection
5. Packaging

Let me map out these steps in a table, then explain:

Surface Cleaning

I have seen that contamination kills good adhesion. Oils from fingers, dust, or old rust can cause the coating to peel. So the first step is thorough cleaning. Magnets go through degreasing baths and ultrasonic agitation to shake off particles. Rinsing with pure water is next. Finally, drying in a controlled oven removes moisture. This stage is essential because any residue can ruin the final plating.

Pre-Treatment

Sometimes magnets are dipped in an acid solution to remove oxide layers. If we plan on phosphating, the magnet gets immersed in a phosphate solution, forming a thin protective film. This film is also helpful if you want to store the magnets before applying a final coating. The main point is preparing the surface for maximum adhesion. This is not optional if we want a coating that does not peel or bubble later.

Main Coating Application

Electroplating uses electric current to bond zinc or nickel ions to the magnet surface. In the triple-layer nickel system, it usually goes: copper first, then nickel. For epoxy, a dip or spray method coats the magnet, which is then cured at high temperature. The result is a tough, sealed finish. I have noticed that controlling temperature and dwell time is important. Too little and the epoxy remains soft. Too much and it might burn or discolor.

Inspection and Packaging

After coating, magnets go through visual checks for bubbles or discoloration. Tools like thickness gauges measure the plating depth. Salt spray tests confirm corrosion resistance. If I spot defects, I either replate the magnet or discard it if it cannot be salvaged. Finally, packaging is critical. Even a great coating can chip if magnets collide in transit. So, I insist on foam liners or separators. For epoxy-coated magnets, it is extra important since epoxy can scratch more easily than metal plating. Careful packaging helps preserve the coating quality.

All these steps demand precision and consistent monitoring. That is why larger magnet suppliers have dedicated lines for plating and testing. Coating magnets at home or with unverified methods can lead to uneven results. If longevity and performance matter, it’s best to rely on professional coating services.

Conclusion

Magnet coatings safeguard neodymium magnets against rust, moisture, and mechanical damage. When you match the coating type to your project’s needs, you unlock reliable and long-lasting magnetic performance.

Magnet Coatings: FAQs

1. What are the different types of coatings available for magnets?

Magnet coatings include nickel (Ni-Cu-Ni), epoxy resin, rubber, plastic (ABS), zinc plating, and Parylene-C. Each offers varying levels of corrosion resistance, durability, and suitability for specific applications such as marine, medical, or industrial environments.

2. How do various coatings protect magnets from corrosion?

Coatings serve as protective barriers, shielding magnets from moisture, oxidation, and corrosive substances. For example, nickel plating provides a durable layer, while epoxy coatings offer enhanced protection in humid or saline conditions.

3. Which magnet coating is best for outdoor or marine environments?

For outdoor or marine use, epoxy and rubber coatings are ideal due to their superior resistance to moisture and saltwater. Stainless steel casings also provide excellent corrosion protection in such environments.

4. Do magnet coatings affect the strength or performance of the magnet?

Thin coatings like nickel have minimal impact on magnetic strength. However, thicker coatings such as rubber or plastic may slightly reduce magnetic pull due to increased distance between the magnet and the target surface.

5. What is the most durable coating for magnets in high-humidity areas?

Epoxy coatings are highly durable in high-humidity environments, offering robust protection against moisture-induced corrosion. They’re commonly used in applications exposed to water or frequent condensation.

6. How does the cost vary among different magnet coatings?

• Nickel: Cost-effective and widely used.
• Epoxy: Moderately priced, offers better corrosion protection.
• Rubber/Plastic: Higher cost due to materials and processing.
• Parylene-C: Premium-priced, used in specialized or medical applications.

7. Are there specific coatings recommended for medical applications?

Yes, Parylene-C is recommended for medical use due to its biocompatibility, sterilization resistance, and moisture barrier properties, making it ideal for magnets used in implants or diagnostic devices.
