The Ultimate Guide to Neodymium Magnet: Composition, Uses, and Advantages

Neodymium magnets¹ can make your product more powerful—or cost you thousands if chosen wrong.

Neodymium magnets are high-strength rare-earth magnets made from neodymium, iron, and boron. They're the strongest permanent magnets available today.

I’m East, Senior Manager of Mainrich Magnets. We’ve been making neodymium magnets in China for over 30 years. We work with engineers, R&D teams, and procurement managers from companies around the world. I wrote this guide to help you avoid the most common pitfalls—and choose the right magnet, faster.

---

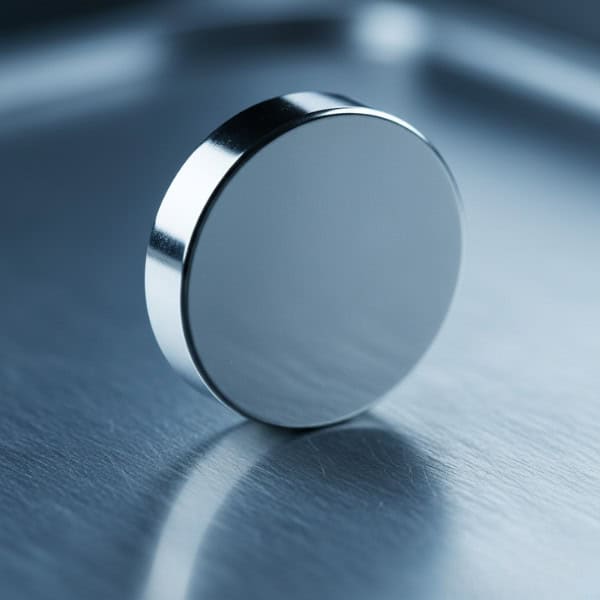

What Are Neodymium Magnets?

They’re smaller, stronger, and more efficient than older magnet types.

Neodymium magnets are powerful permanent magnets composed of neodymium, iron, and boron (NdFeB), offering unmatched magnetic strength in compact sizes.

We call them "NdFeB" in the industry. They’ve replaced ferrite² and alnico magnets in motors, sensors, and electronics because they deliver higher power in less space. They’re also widely used in robotics³, EVs, wind turbines, and medical imaging systems.

---

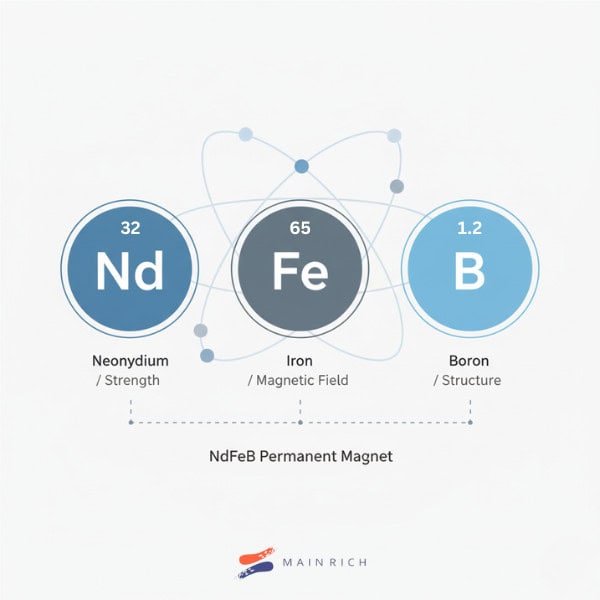

What Is the Composition of Neodymium Magnets?

The secret is in the atomic structure⁴.

Neodymium magnets use a Nd₂Fe₁₄B crystal structure, combining neodymium, iron, and boron—sometimes with additives like dysprosium for heat resistance.

Element Breakdown: What Each Component Does

Element	Purpose
Neodymium	Drives magnetic strength
Iron	Enhances magnetic field intensity
Boron	Stabilizes the magnetic crystal structure
Dysprosium (optional)	Improves thermal resistance

We tweak the composition depending on the application. In EV motors, we often add dysprosium for thermal stability⁵. For electronics, we keep it lean to reduce cost. Knowing what’s inside affects durability, strength, and price.

---

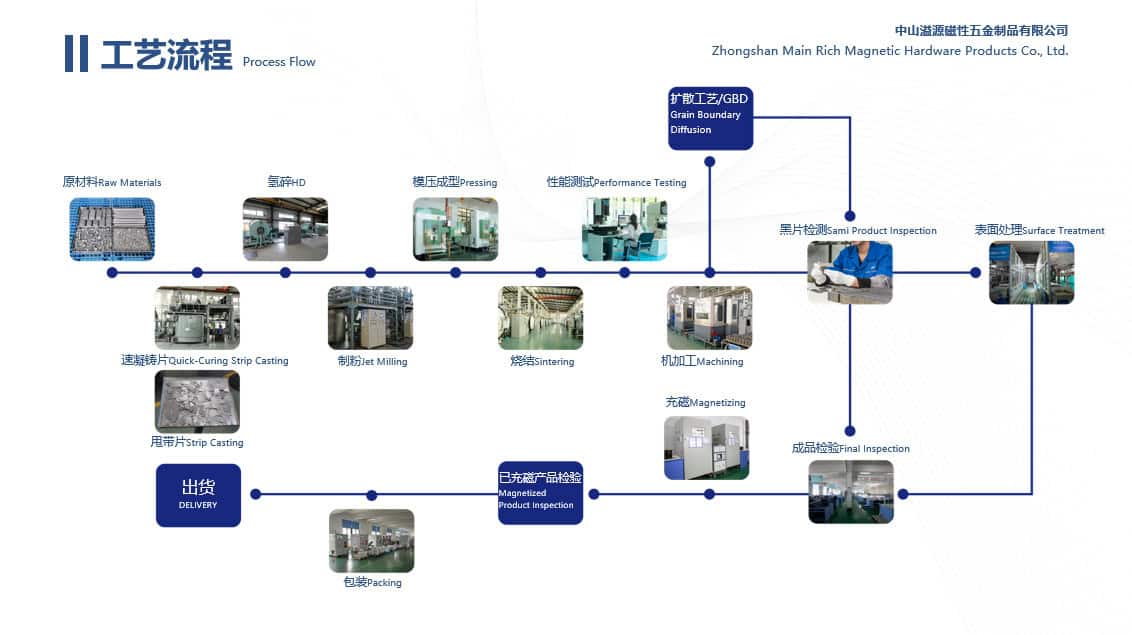

How Are Neodymium Magnets Manufactured?

It’s not just about the materials—it’s the process.

Neodymium magnets are made using powder metallurgy: melt alloy → grind to powder → align and press → sinter → coat → magnetize.

The 7 Stages of NdFeB Magnet Production

1. Alloy Creation – Raw neodymium, iron, boron, and additives are melted in vacuum.
2. Grinding – Alloy is ground into fine powder under nitrogen or argon.
3. Alignment & Pressing – Powder is aligned with a magnetic field and pressed into shapes.
4. Sintering – We bake the pressed parts at ~1,000°C to form solid magnets.
5. Machining – Magnets are cut into final shapes (blocks, arcs, rings).
6. Coating⁶ – Coatings like NiCuNi or epoxy are applied to prevent corrosion.
7. Magnetizing – Final parts are exposed to a strong magnetic field for full strength.

Each step impacts the final magnet’s quality. We've refined this process over decades to reduce waste, improve strength, and hit tight tolerances.

Read this article to learn more about NdFeB Magnet Production process⁷

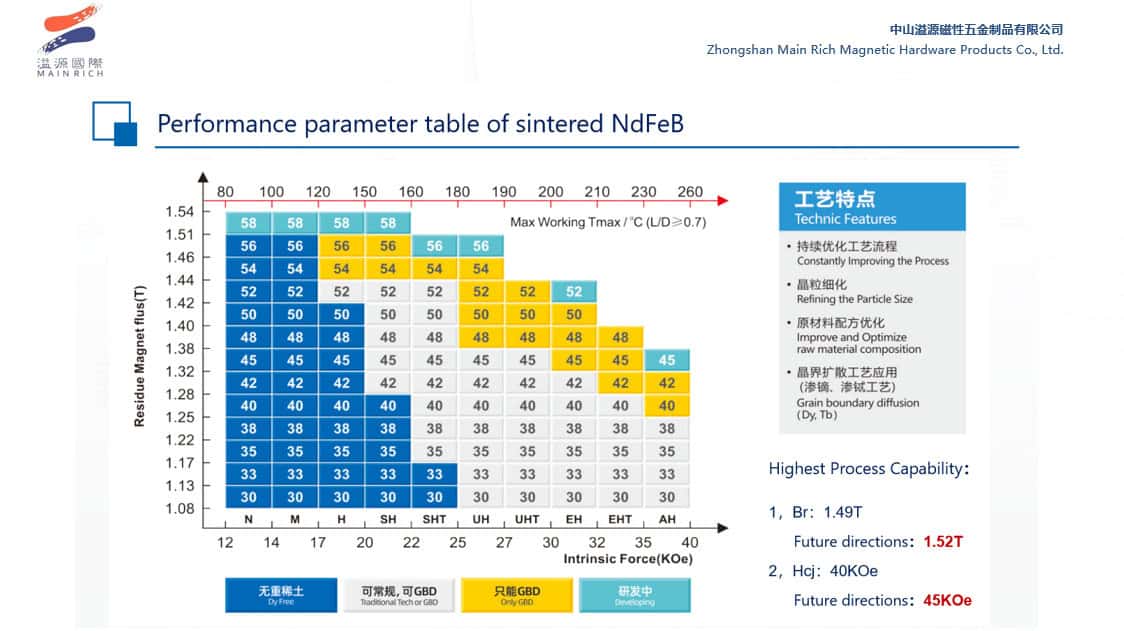

What Are the Key Properties and Grades of Neodymium Magnets?

Stronger isn’t always better. It has to fit the job.

Neodymium magnet grades (N35–N52, SH–EH) indicate energy density⁸ and max working temperature.

How to Compare NdFeB Grades and Temperature Ratings

Grade	BHₘₐₓ (MGOe)	Max Temp (°C)	Application Use
N35	~35	80	Low-cost electronics
N529	~52	60–65	High-performance, low-temp gear
N42SH	~42	150	Automotive/robotics (hot zones)
N48EH	~48	200	Aerospace, EVs

Some clients over-specify N52 for strength, not realizing it demagnetizes easily under heat. I always recommend a thermal-rated grade (SH, UH, EH) for anything above 80°C.

---

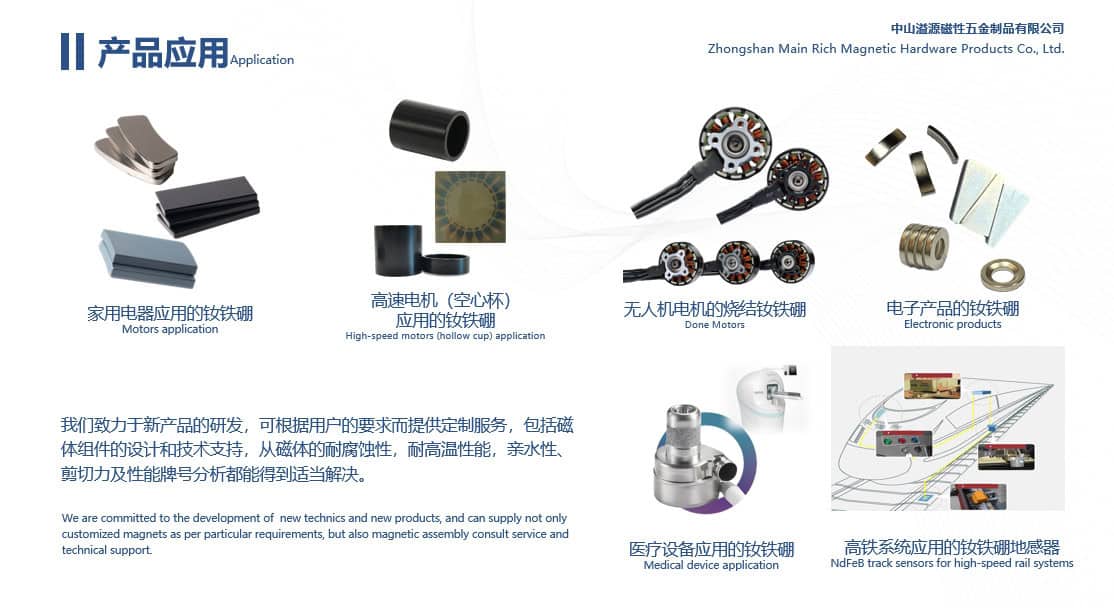

What Are the Common Uses of Neodymium Magnets Across Industries?

These magnets are found in the world’s fastest, smallest, smartest machines.

Neodymium magnets power devices in automotive, aerospace, robotics, electronics, and medical industries.

Industry Applications: Where NdFeB Magnets Are Essential

Industry	Typical Use Cases
Automotive	EV motors, sensors, pumps
Medical	MRI, surgical tools, therapy devices
Electronics	Earbuds, smartphone parts, vibration modules
Aerospace	Flight controls, navigation sensors
Renewable Energy	Wind turbines, linear actuators
Robotics	Servo motors, magnetic grippers

One German client replaced 12 ferrite parts with 4 custom NdFeB blocks. Same torque, half the space. Their assembly time dropped by 30%.

Extend reading : Magnets in Motor¹⁰

---

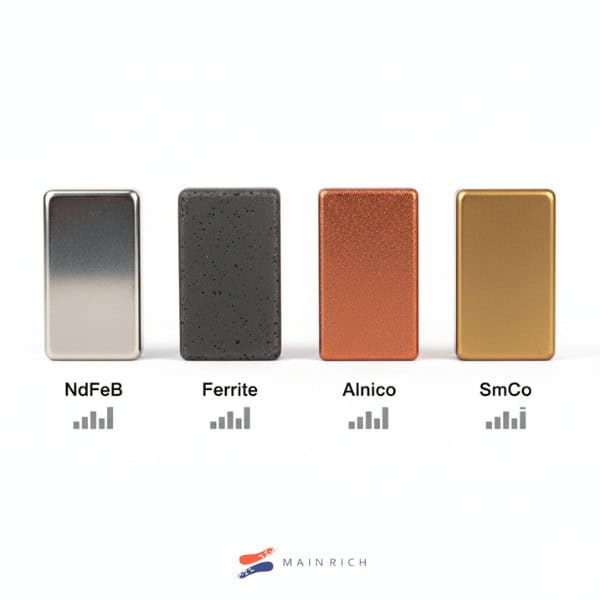

What Advantages Do Neodymium Magnets Offer Compared to Other Magnet Types?

They’re small, but they punch far above their weight.

Neodymium magnets provide stronger pull force per unit volume than any other commercially available magnet type.

NdFeB vs Ferrite vs Alnico vs SmCo: Strength, Stability & Use Case

Property	NdFeB (Neodymium)	Ferrite (Ceramic)	Alnico	SmCo (Samarium Cobalt)
Magnetic Strength	⭐⭐⭐⭐⭐ (Very High)	⭐⭐ (Low)	⭐⭐⭐ (Moderate)	⭐⭐⭐⭐ (High)
Size Efficiency	Excellent	Poor	Moderate	Very Good
Temp Resistance	Fair (unless graded)	Excellent	Excellent	Excellent (up to 350°C)
Corrosion Resistance11	Poor (needs coating)	High	High	Very High (no coating needed)
Cost	Moderate	Very Low	High	Very High
Typical Use Cases	Motors, electronics, sensors	Speakers, fridge seals, toys	Instruments, pickups	Aerospace, high-temp motors

When to choose Samarium Cobalt (SmCo):
If your application demands high strength and high heat resistance (above 200°C), or you’re operating in harsh corrosive environments—SmCo may be worth the cost. It’s ideal for aerospace, turbines, or precision sensors where failure is not an option.

When to choose NdFeB:
If you need maximum magnetic performance in the smallest possible size and can control the environment (or coat properly), NdFeB offers the best power-to-cost ratio.

Extend Reading: Samarium Cobalt vs Neodymium¹²

How to Choose the Right Neodymium Magnet for Your Application?

Choosing the wrong grade or shape leads to failure—or wasted money.

Evaluate pull force, working temperature, shape, and coating needs to match your magnet to your use case.

What to Specify Before Ordering Neodymium Magnets

Before placing your order, it’s important to define these five core specs:

1. Grade – Choose the right balance between magnetic strength and temperature resistance. For example, N52 is very strong but limited to ~65°C. For higher temps, consider N42SH or N48EH.

2. Shape – Select a shape that fits your assembly: discs, blocks, rings, or arc segments. Arc magnets are often used in motors, while discs are common in sensors.

3. Size – Ensure the magnet’s dimensions (especially surface area and thickness) match the space available—and provide enough field strength for your application.

4. Pull Force¹³ – Estimate how much holding or torque force is required. Choose a magnet that meets or slightly exceeds this threshold.

5. Environment – Consider exposure to humidity, temperature, or chemicals. This affects both the required coating (e.g. epoxy, parylene) and whether to choose high-temp grades.

I recommend sharing your operating conditions and CAD drawings with your supplier before ordering—this saves time, cost, and avoids mismatches in strength or shape.

---

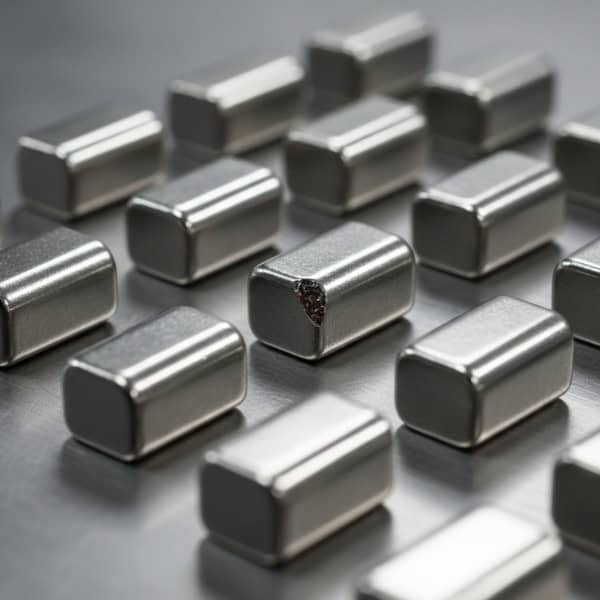

What Are the Considerations for Handling and Coating Neodymium Magnets?

They’re strong—but fragile.

NdFeB magnets are brittle and prone to corrosion; they must be coated and handled with care.

Best Coatings and Handling Tips for Industrial Use

Coating Types:

Coating	Best For
NiCuNi	General industrial use
Epoxy	Marine, humid environments
Zinc	Budget option, low resistance
Parylene	Medical, biocompatible

Handling Tips:

• Never snap them together—they chip easily.
• Store them with spacers to avoid self-demagnetization.
• Keep away from pacemakers and metal tools.
• Use gloves during assembly—pinch risk is real.

Extended Reading: Magnets Coating Guide¹⁴

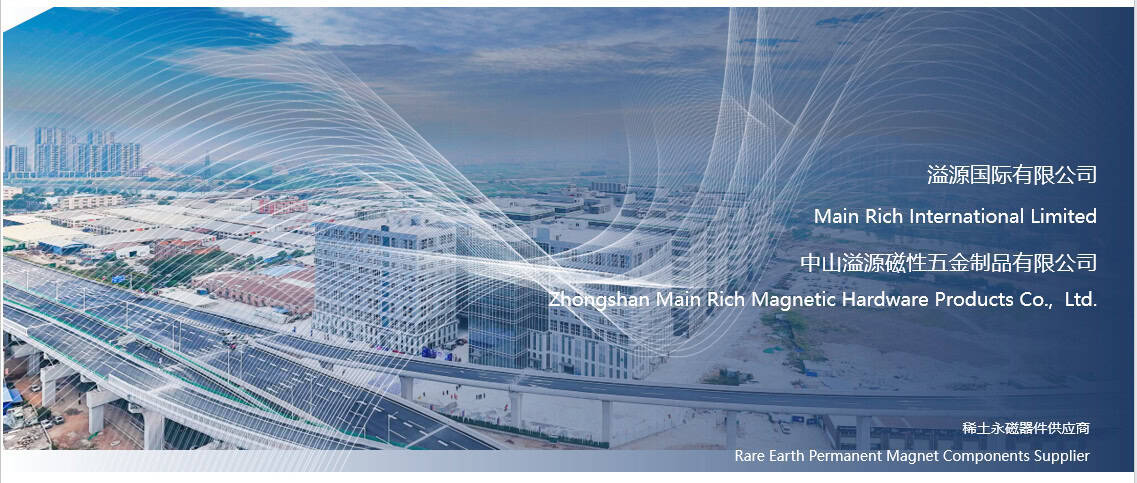

Where to Buy High‑Quality Neodymium Magnets for Industrial Use?

Not all suppliers are equal. Choose one that understands your application.

Choose a supplier that offers application-specific grades, technical guidance, and a proven track record with industrial clients.

At Mainrich Magnets, we:

• Customize magnets to your shape, strength, and coating specs
• Deliver ISO‑certified quality with factory-direct pricing
• Serve clients across EVs, robotics, aerospace, and medical
• Offer engineering support and long-term reliability

We’ve helped procurement teams across Germany, Japan, and North America simplify sourcing—and scale with confidence.

Extended Reading: Neodymium Magnets Selecting Guide¹⁵

---

Let’s Work Together on Your Next Magnet Project

If you’re sourcing magnets for a new product, upgrading an existing motor, or solving a performance issue, I’d love to help.

• Tell me your application
• I’ll suggest the right grade, size and coating
• You’ll get a custom quote with fast lead times

🔗 Contact Mainrich Magnets Today for expert support and precision manufacturing from a factory with 30 years of experience.

---

Conclusion

Neodymium magnets offer power, precision, and performance—if chosen right. This guide helps you compare grades, compositions, and suppliers with confidence.
