Magnets in Robotics: How Do Magnets Power the Future of Robotics?

Magnets might seem invisible in most machines, but in robotics, they do a lot of heavy lifting. If your robot struggles with weak actuators¹ or inconsistent sensors, the solution might not be more code—it could be the right magnet.

Magnets power robotics by enabling contactless motion, precise sensing, and compact motors. They reduce mechanical complexity, improve energy efficiency, and allow flexible designs.

While most engineers focus on software or circuits², I’ve seen many robotic systems improve dramatically just by choosing a better magnet. Let’s explore how magnets quietly shape the future of automation.

READ More about how magnets are used in Robotics and Automation?³

What Types of Magnets Are Essential in Modern Robotics?

If you're selecting magnets for a robotic design, the first step is knowing your options. I've worked with both permanent⁴ and electromagnets⁵, and the choice changes everything.

Modern robotics relies mainly on permanent magnets like neodymium for static magnetic fields and electromagnets when controllability is needed.

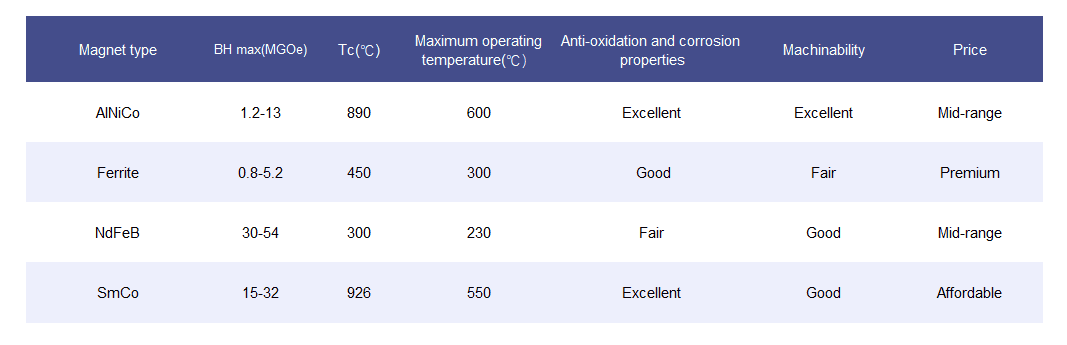

Permanent Magnets vs. Electromagnets

Permanent magnets (like NdFeB and SmCo) hold their magnetism without external power. They are compact and energy-efficient. Electromagnets, by contrast, allow on/off control but require power and cooling.

Magnet Type	Pros	Cons
Neodymium (NdFeB)	Very strong, compact, efficient	Corrosion-prone, temperature limits
Samarium Cobalt	High-temp tolerance, corrosion-resistant	More expensive
Electromagnets	Switchable fields, controllable force	Needs power supply, generates heat

Read this article (Neodymium vs Samarium-Cobalt Magnets⁶) to further understand difference between Neodymium and Samarium Cobalt

In high-torque robot joints, I always go for neodymium. For temporary magnetic grips, electromagnets shine. The material matters too. NdFeB works best when size and power density⁷ are critical, while SmCo is better for harsh environments.

Where Are Magnets Most Commonly Used in Robotic Systems?

In robotics, magnets are hiding in places you might not expect. Whether you're designing grippers or drive motors, chances are you're already using them.

Magnets are found in robotic motors, grippers, sensors, joints, and actuators. They allow precise movement and contactless sensing, essential for advanced automation.

Core Applications

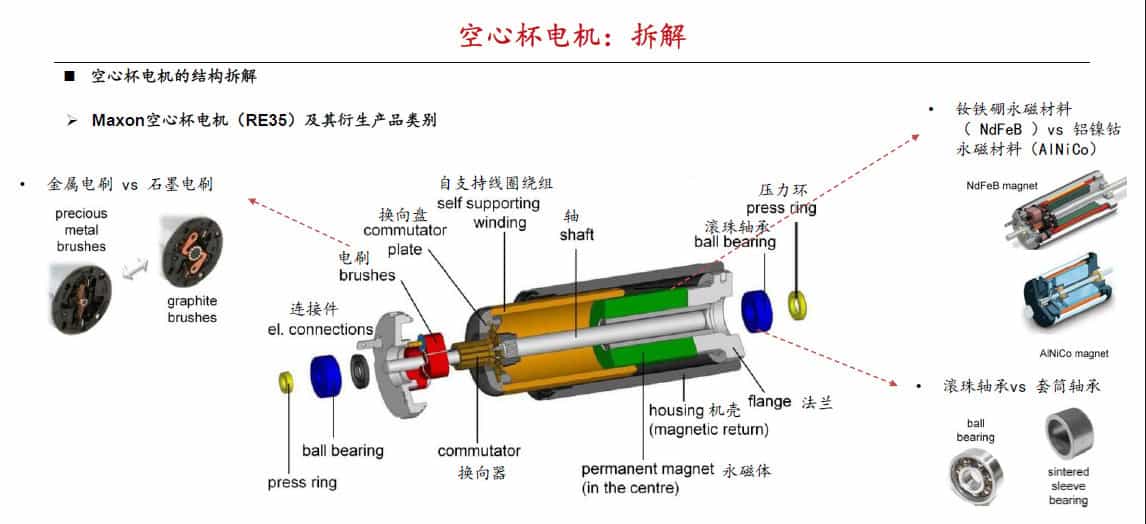

1. Motors and Drives: Almost all brushless DC motors⁸ in robots use permanent magnets.
2. Sensors: Magnetic encoders detect angle, speed, and position without physical contact.
3. Grippers: Magnetic grippers handle metal parts gently without complex mechanics.
4. Joints and Actuators: Magnetic fields⁹ create clean, smooth motion without friction.

In my experience, switching from mechanical encoders to magnetic ones in a pick-and-place robot line reduced maintenance by 70%. No dust, no misalignment.

How Do Magnetic Actuators Improve Robot Performance?

I often see robotic systems fail due to friction, wear, and complex gearboxes. That’s where magnetic actuators bring serious improvements.

Magnetic actuators improve robot performance by delivering contactless movement, higher precision, and longer durability while reducing energy use.

Why Contactless Wins

Traditional actuators rely on physical contact to move parts—this causes wear. Magnetic actuators use fields to push or pull without contact. That means:

• Less friction
• No lubrication
• No backlash in gears

Magnetic torque motors, for example, use magnets in stators and rotors to drive rotation directly. I worked with a team that replaced a harmonic drive with a direct magnetic drive. It made the robotic arm 30% faster and much quieter.

Also, magnetic actuation improves energy efficiency. There's less heat and less loss. This matters when running hundreds of robots on the same power line.

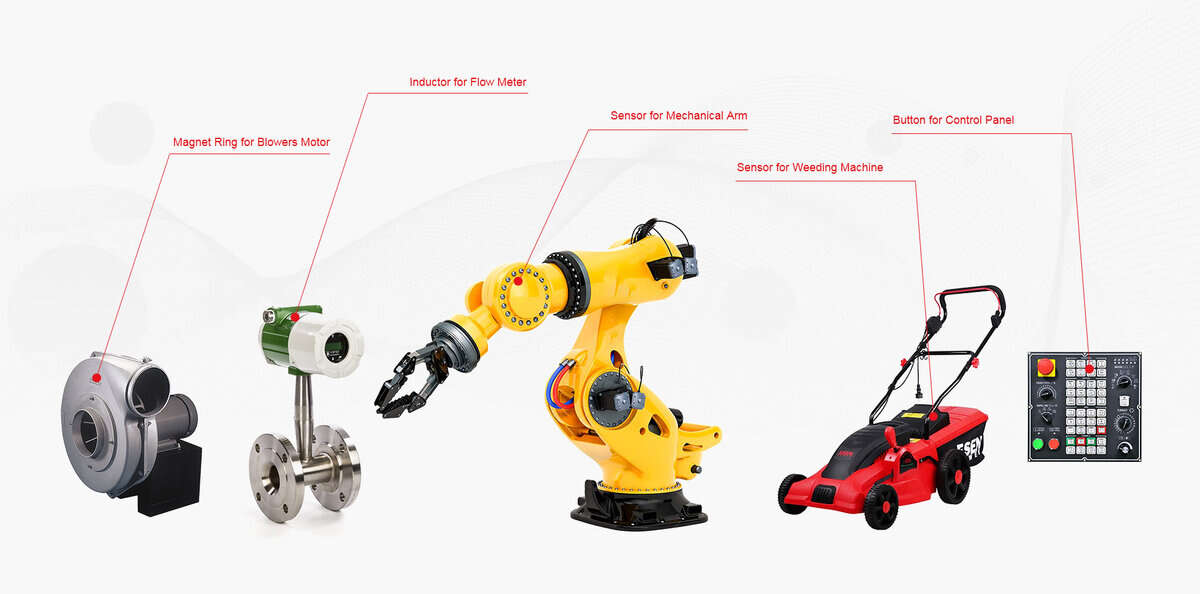

What Are the Benefits of Magnetic Sensors in Robotics?

When your robot needs to know exactly where it is, magnetic sensors are your best bet. I've used them for both industrial robots and mobile platforms.

Magnetic sensors offer precise, non-contact detection of position, velocity, and force, improving feedback systems and navigation in robotics.

Better Sensing for Smarter Robots

Magnetic sensors detect changes in magnetic fields to measure motion or proximity. Types include:

• Hall-effect sensors (measure linear/rotational position)
• Magnetoresistive sensors (more sensitive for low-noise environments)
• Fluxgate sensors (for 3D field mapping)

Application	Sensor Type	Use Case Example
Position feedback	Hall-effect	Arm joints or sliders
Velocity detection	MR or Hall sensor arrays	Motor RPM tracking
Force feedback	Magnetic elastomers	Soft grippers, collaborative robots
Navigation	Magnetometers	Mobile robot heading estimation

In one mobile robot project, magnetic wheel encoders allowed millimeter-level accuracy without slipping, even on dusty factory floors. That precision wouldn’t be possible with optical sensors alone.

How Do You Select the Right Magnets for Robotic Applications?

Not all magnets are equal. I learned this the hard way during a project that kept overheating due to poor grade choice. You need to start with your environment and end goals.

To choose the right magnet, match your mechanical, thermal, and magnetic requirements to material specs and operating conditions.

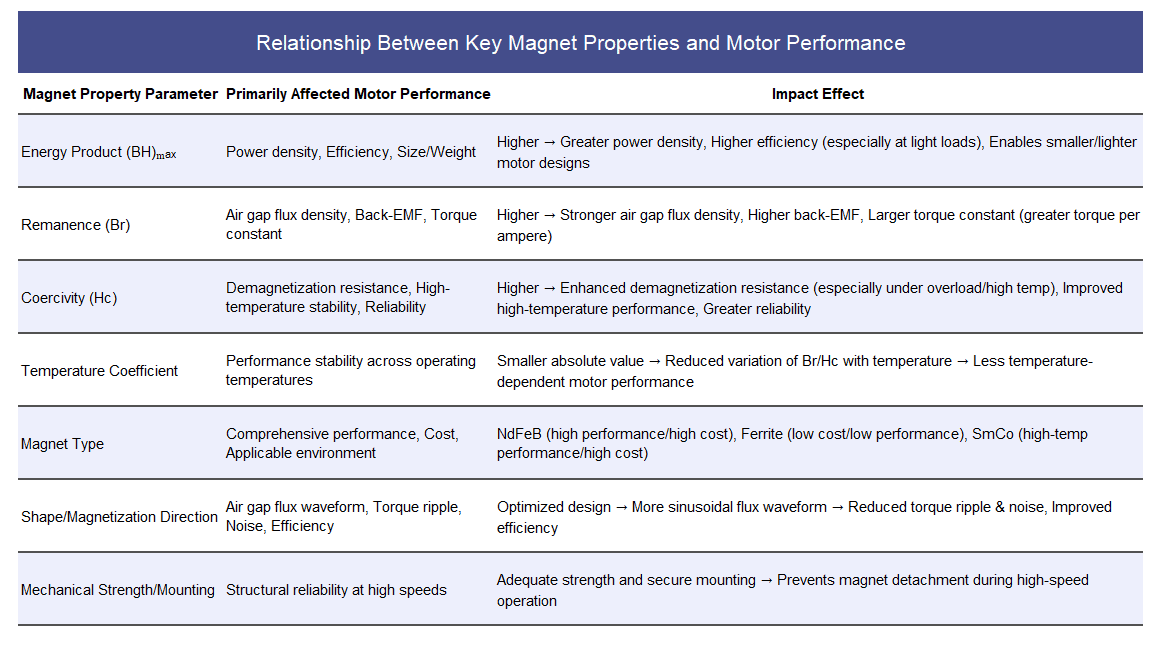

Factors to Consider

1. Performance: Pull force, size, remanence (Br), coercivity (Hc).
2. Temperature: Max working temp. NdFeB tops out at 80–150°C, SmCo goes up to 350°C.
3. Coatings: Nickel (NiCuNi), epoxy, or zinc to prevent corrosion.
4. Shape: Disc, ring, block, arc magnets—match to your housing.
5. Magnetization Direction: Axial vs. radial based on force direction needed.

Magnet Grade	Max Energy (BHmax)	Temp Limit	Best For
N35	~35 MGOe	~80°C	Low-cost, general purpose
N52	~52 MGOe	~65°C	High torque, compact motors
SmCo	~26–32 MGOe	~350°C	Harsh environments, motors

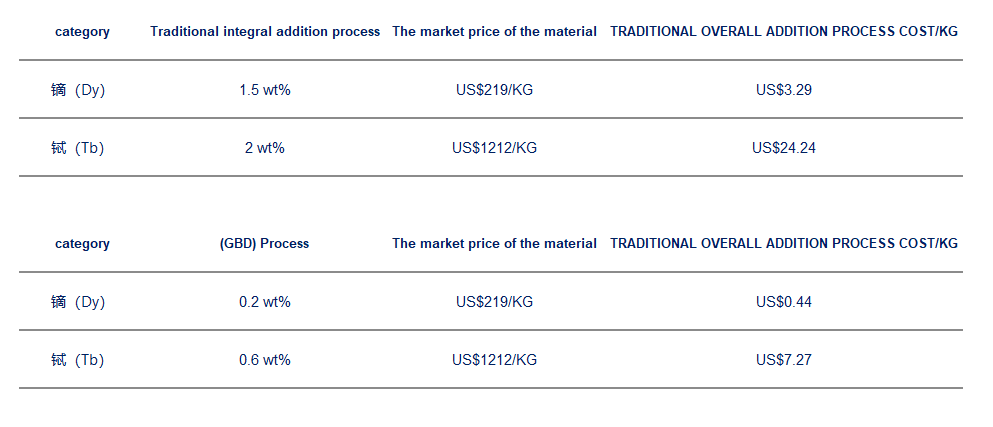

Also factor in compliance. For export, I always check if the magnets meet RoHS, REACH, and if they contain any restricted elements (like Dy).

Learn more form our Neodymium Magnet Buyers Bible¹⁰

What Are the Latest Innovations in Robotic Magnetism?

The future of robotics is soft, wireless, and flexible. And magnets are right at the center of that evolution.

Emerging innovations include soft magnetic actuators, flexible magnet composites, and wireless magnetic power systems for next-gen robots.

Future Is Magnetic

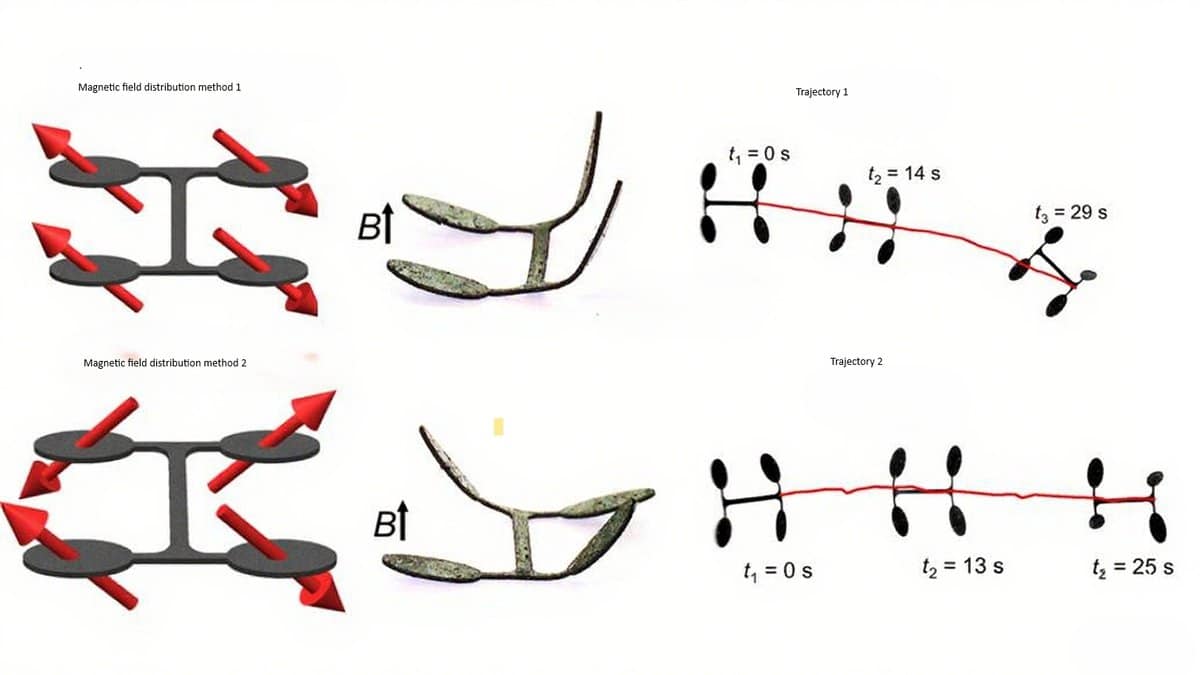

1. Soft Robotics: Researchers use magnetic elastomers that deform under fields. This enables grippers that "flow" around objects without joints. Perfect for delicate handling like fruit-picking or surgery.
2. Wireless Power: Magnetic resonance is being explored to wirelessly charge small robots or implants, removing cables entirely.
3. Flexible Sensors: Printed magneto-sensitive films allow embedding magnetic feedback directly into robot skins.

I recently saw a prototype of a drone that stabilizes flight using magnetically tuned wings. No mechanical hinges. Just layered magnet sheets that flex under field control.

Expect more crossover between materials science and magnetics in robotics in the coming years.

How Can Magnetic Solutions Reduce Your Robotics Manufacturing Costs?

Cost savings often come from fewer moving parts. Magnets can help with that.

Magnets reduce robotic costs by cutting maintenance, simplifying design, and improving energy efficiency—all of which lower total cost of ownership.

Real Value from Simple Parts

1. Lower Maintenance: Magnetic encoders and actuators don’t wear out like mechanical systems. Fewer replacements, fewer failures.
2. Energy Efficiency: Magnets allow for direct drive motors. Less gear loss, smaller power bills.
3. Simplified Design: Using magnets for gripping or locking reduces need for complex pneumatics or hydraulics.

In one robotic packaging line, switching from pneumatic to magnetic pickers cut air compressor use by 40%. It also sped up operations since there was no delay from air pressure buildup.

Magnets often pay for themselves just by eliminating extra parts.

Conclusion

Magnets make robots simpler, smarter, and more efficient. By understanding their role, we can design automation systems that are lighter, faster, and more reliable.
