Neodymium magnets (NdFeB) are known for powerful magnetic fields, but they face challenges at high temperatures. Are they the best choice for extreme heat applications, or should we consider alternatives?
Neodymium magnets can handle temperatures up to 80-200°C, depending on their grade and design. Beyond that, their performance drops unless you choose specialized high-temperature NdFeB materials1
In this article, I will explore how temperature influences NdFeB magnet performance. I will also compare other magnet materials, so you can pick the right one for your needs.
Why Neodymium Magnets Are Popular
Neodymium magnets are a staple in many industries. They power electric motors, robotics, and consumer electronics. They produce strong magnetic fields in small sizes, which makes them ideal for modern product designs.
Yet, they have an Achilles’ heel: heat. Their magnetic strength drops2 as the environment gets hotter. Moisture can also damage them if they are not coated properly. So, how do we overcome these limitations?
Key Benefits of NdFeB Magnets
- Exceptional Strength: They have the highest magnetic strength among commercial magnets.
- Compact Size: Smaller footprints save space in device designs.
- Versatility: They come in many shapes and sizes, suitable for various industries.

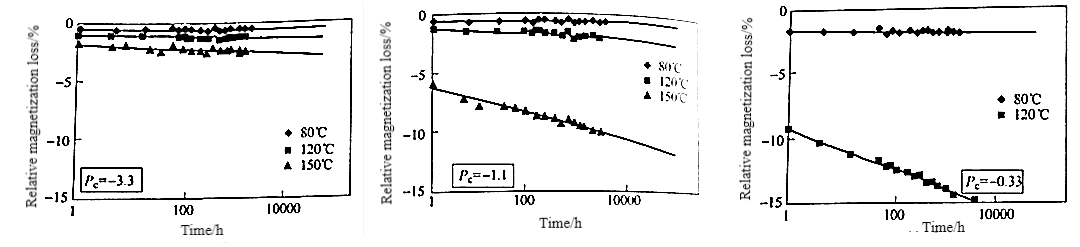

Understanding High-Temperature NdFeB Grades
Manufacturers offer specialized NdFeB grades that tolerate higher temperatures. These grades keep more of their magnetic strength up to around 150-200°C. But how do they compare to standard NdFeB?
High-temperature NdFeB magnets retain strong magnetism at temperatures where standard NdFeB magnets fail, often above 150°C.
Temperature Comparison Table
| Magnet Type | Max Operating Temp (°C) | Common Use Cases | Strength Retention |
|---|---|---|---|
| Standard NdFeB | 80-120 | Consumer electronics, sensors | Very High at room temp |
| High-Temp NdFeB | 150-200+ | Automotive, industrial motors | High in elevated temps |
| Samarium Cobalt | 250-350 | Aerospace, defense, high-heat | Good, but lower MGOe |
| Alnico | 500-550 | Sensors, high-temperature tools | Moderate strength |
In many cases, Samarium Cobalt and Alnico magnets can withstand higher temperatures. However, they often lose out to NdFeB in raw magnetic strength. High-temperature NdFeB tries to close that gap, offering stronger fields than Samarium Cobalt while handling more heat than standard NdFeB.
When Do Neodymium Magnets Demagnetize?
Neodymium magnets lose their permanent magnetism when heated above a certain point. This threshold varies based on the magnet’s grade. Standard NdFeB grades begin to demagnetize at around 80°C, while high-temperature variants often handle well above 150°C.
Curie Temperature3 vs. Operating Temperature
- Operating Temperature: The maximum temperature at which the magnet can function without losing significant strength.
- Curie Temperature: The point at which the magnet’s internal crystal alignment breaks down completely, resulting in a permanent loss of magnetism.
Demagnetization Factors
- Heat Exposure: Sustained high heat can gradually reduce magnetic properties.
- Magnet Grade: Different grades have different thresholds.
- Environment: Rapid temperature cycling (hot to cold) can cause micro-cracks.
Can Neodymium Magnets Get Wet?
Water and NdFeB magnets do not mix well. Neodymium is prone to corrosion if left unprotected. Manufacturers usually coat these magnets with nickel, zinc, epoxy, or other treatments to improve corrosion resistance.
If you need NdFeB magnets in humid or wet conditions, coatings or encapsulation methods are essential to prevent rust and maintain longevity.
Protective Coating Options
| Coating | Key Properties | Pros & Cons |
|---|---|---|
| Nickel | Common, cost-effective | Good corrosion resistance, moderate cost |
| Zinc | Economical, thinner layer | Lower resistance than nickel |
| Epoxy | Chemical and moisture barrier | Great sealing, can be prone to chipping |
| Hybrid Coatings | Multiple layers (e.g., Ni + Epoxy) | Enhanced durability, higher cost |
What Is the Curie Point of Neodymium Magnets?
The Curie point indicates the temperature at which magnetic materials lose their ability to be magnetically aligned. For neodymium magnets, the Curie temperature ranges from about 310°C to 380°C.
In practice, engineers avoid operating near the Curie temperature. Staying well below it—around 150-200°C for high-temperature NdFeB—is advised to maintain strong magnetic output.
Curie Point vs. Practical Usage
- Curie Point (310-380°C): Full breakdown of magnetic alignment.
- Safe Operating Range: Usually up to 80-200°C, depending on grade.
Designs that need reliable magnetism at high heat often consider Samarium Cobalt or advanced high-temperature NdFeB.
Real-World Applications for High-Temperature NdFeB
High-temperature NdFeB magnets find their niche in industries where strong fields and elevated temperatures coexist. Common examples include:
- Automotive: Electric powertrains and hybrid systems generate significant heat. High-temp NdFeB ensures motors run efficiently.
- Industrial Automation: Robotic arms, high-speed assembly lines, and servo motors rely on robust magnets that can handle frictional heat.
- Medical Devices: Sterilization processes involve higher temperatures, demanding magnets that remain stable through repeated cycles.
In these areas, magnet selection is critical to ensure reliability and cost-effectiveness.
check out this article about high temp NdFeB application to learn more
Handling and Best Practices
Selecting a high-temperature NdFeB magnet is only part of the solution. Proper handling, cooling, and mounting methods will help maximize performance.
- Cooling Systems: Integrate fans or heat sinks in motor designs that generate prolonged heat.
- Thermal Insulation: Use insulating materials around the magnet if the heat source is localized.
- Mechanical Stress: Excessive temperature cycling can cause microfractures, so secure the magnet without stress points.
- Surface Treatments: Coatings or sealants protect against corrosion and mechanical damage.
The Science Behind High-Temperature NdFeB
Neodymium magnets derive their strength from a combination of rare-earth metals. Adjustments to this alloy composition change how they behave under heat. Elements like dysprosium or terbium are sometimes added to improve thermal stability. This is why certain “H,” “SH,” or “UH” grades exist—each variation alters the magnet’s tolerance to temperature while aiming to preserve its magnetic strength.
Chemical Composition Table (Example)
| Grade | Nd Content (%) | Fe Content (%) | Additional Elements | Operating Temp (°C) |
|---|---|---|---|---|
| N35 | ~32 | ~66 | B, minor metals | Up to 80 |
| N42 | ~31 | ~67 | B, minor metals | Up to 100 |
| SH Grades | ~28-30 | ~66-68 | Dysprosium, Terbium | 150 – 180 |
| UH Grades | ~27-29 | ~67-69 | Higher Dy/Tb | 180 – 200+ |
Higher dysprosium content4 tends to boost the temperature threshold, but it may slightly reduce overall magnetic strength. As a result, selecting the perfect grade is a balancing act between raw power, temperature requirements, and cost.
Frequently Asked Questions (FAQ)
1. Are high-temperature NdFeB magnets stronger than Samarium Cobalt?
Yes, in general, NdFeB magnets have higher maximum energy products (MGOe) than Samarium Cobalt. However, Samarium Cobalt magnets can withstand higher temperatures than most NdFeB grades.
2. Do I always need to use a high-temperature grade?
Not necessarily. If your application never exceeds 80°C, a standard NdFeB magnet may suffice. Consider high-temperature grades when your system goes above 120°C or faces frequent thermal spikes.
3. How can I protect NdFeB magnets from rust?
Use coatings like nickel or epoxy. In especially corrosive or humid environments, consider full encapsulation in non-reactive materials.
4. Does repeated heating and cooling damage magnets?
Thermal cycling can stress the magnet and coatings. Proper design and heat management reduce the risks of demagnetization or physical damage.
Conclusion
Neodymium magnets offer unmatched magnetic power. For extreme conditions, high-temperature NdFeB grades are a strong solution. When combined with thoughtful design, coatings, and thermal management, these magnets can thrive in challenging environments. With a clear understanding of temperature ranges, demagnetization points, and protective measures, you can pick the right magnet and keep your operations running smoothly—even under heat.
-
