Choosing the wrong magnet grade can derail your project. Let’s dissect N42 neodymium magnets1—the sweet spot between strength, heat resistance, and cost for robotics, automotive, and industrial automation.
N42 neodymium magnets deliver 42 MGOe magnetic energy2, balancing strength and affordability. They outperform higher grades in high-heat scenarios (up to 120°C with N42H) and are widely used in motors, medical devices, and renewable energy systems.
But does N42 truly meet industrial demands? Let’s analyze critical factors engineers like you prioritize—from load capacity3 to supplier selection.
Is N42 Magnet Strong Enough for Industrial Use?
Will N42 handle heavy loads without breaking the bank? Let’s cut through marketing hype and focus on real-world performance.
Yes, N42 magnets provide sufficient strength for most industrial uses. A 10mm-thick N42 disc holds 6-8kg vertically. Engineers often adjust size or use stacked N42 magnets to match higher grades’ performance at 50% lower cost.
Engineering With N42’s Strength
| Key Design Considerations | Factor | N42 Adjustment Strategy |
|---|---|---|
| Temperature Limits | Use N42H (120°C) for motors | |
| Corrosion Risks | Apply epoxy coating | |
| Space Constraints | Increase diameter by 15-20% |
Case Study: Robotic Arm Optimization
A South Korean automation firm needed grippers to lift 12kg metal parts. Using N52 would’ve cost $8,000. We redesigned the gripper with thicker N42 magnets (18mm vs. 15mm), achieving the same force for $4,200—a 47% saving.
When to Avoid N42?
- Extreme cold (-50°C): Use N42SH
- Ultra-high strength needs: MRI machines require N52

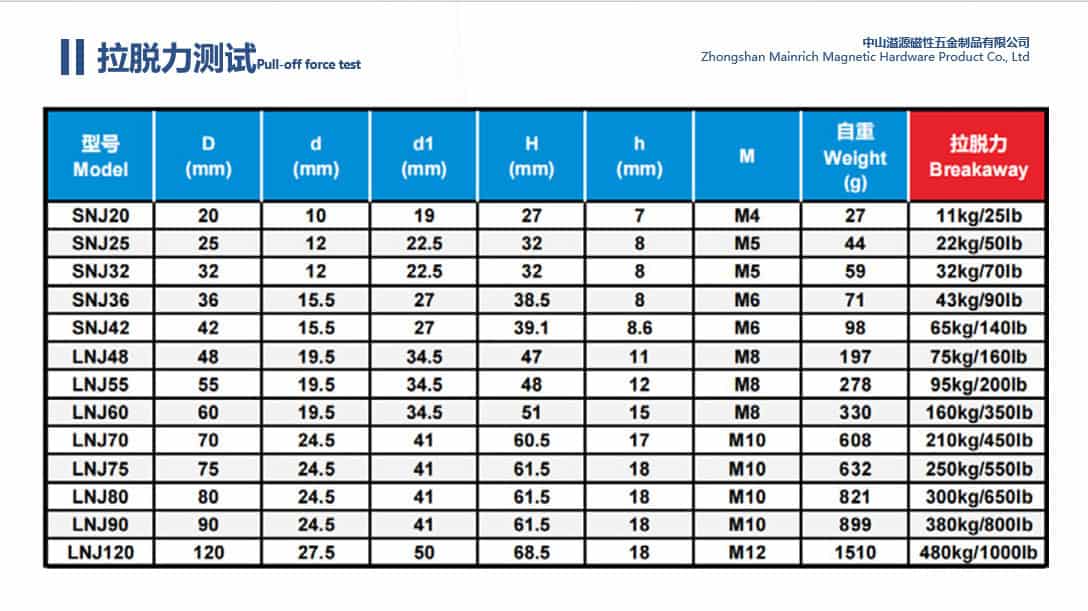

How Much Weight Can an N42 Magnets Hold?

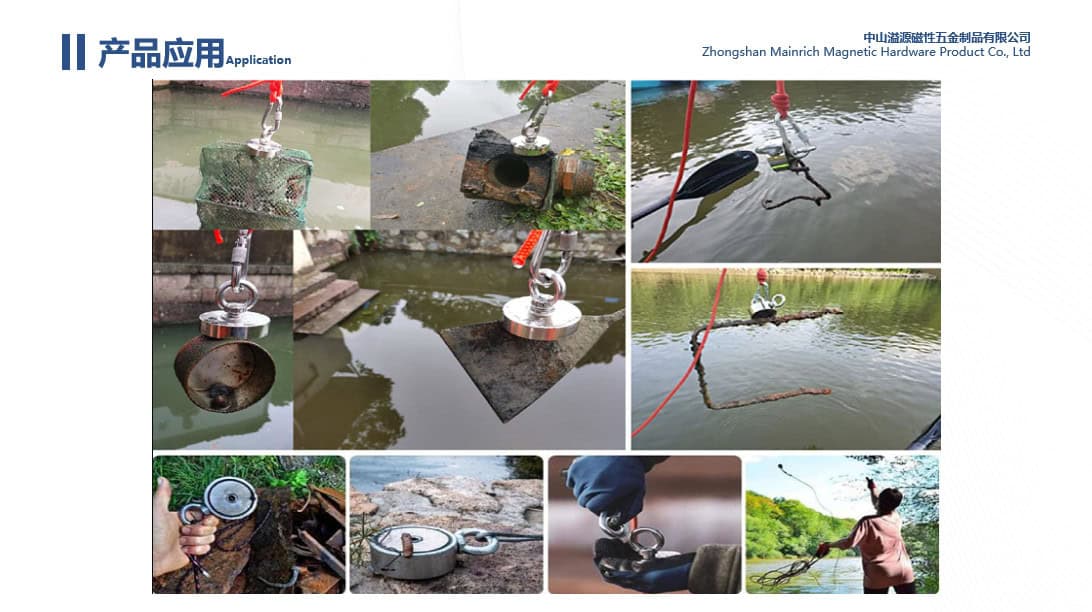

Guessing weight limits risks product failure. Here’s how to calculate N42’s holding force accurately—with formulas engineers trust.
A 20mm x 5mm N42 disc holds 9.5kg on steel surfaces. Capacity drops 30% on curved or uneven materials. Stacking two magnets increases force by 80-110%, not double due to flux leakage.
Precision Load Planning
Formula for Vertical Pull Force4
- F = (B² × A) / (2 × μ₀) Where:
- B = Magnet’s flux density (1.3T for N42)
- A = Contact area (m²)
- μ₀ = Permeability of free space (4π×10⁻⁷)
Example Calculation
For a 10mm diameter N42 magnet:
- B = 1.3T
- A = π × (0.005m)² = 7.85×10⁻⁵ m²
- F = (1.3² × 7.85×10⁻⁵) / (2 × 4π×10⁻⁷) ≈ 6.7kg
Common Mistakes
- Ignoring temperature derating5: Subtract 12% force at 80°C
- Assuming linear scaling: A 2x larger magnet isn’t 2x stronger
N42 vs N52: Which Grade Fits Your Industrial Needs?
N52 isn’t always “better.” Let’s compare grades head-to-head—where N42 shines and where N52 is unavoidable.
N52 offers 52 MGOe vs. N42’s 42 MGOe but fails above 80°C. N42H handles 120°C and costs 50% less. Use N52 only for compact spaces needing max strength.
Grade Selection Matrix
Decision Factors
| Application | Recommended Grade | Why? |
|---|---|---|
| Drone Motors | N42H | High RPM = heat buildup |
| MRI Machines | N52 | Max field strength required |
| Automotive Sensors | N42SH | Vibration + engine heat |
Thermal Failure Example
A German EV startup used N52 in battery cooling fans6. Magnets lost 18% strength at 95°C, causing motor failure. Switching to N42H solved the issue.

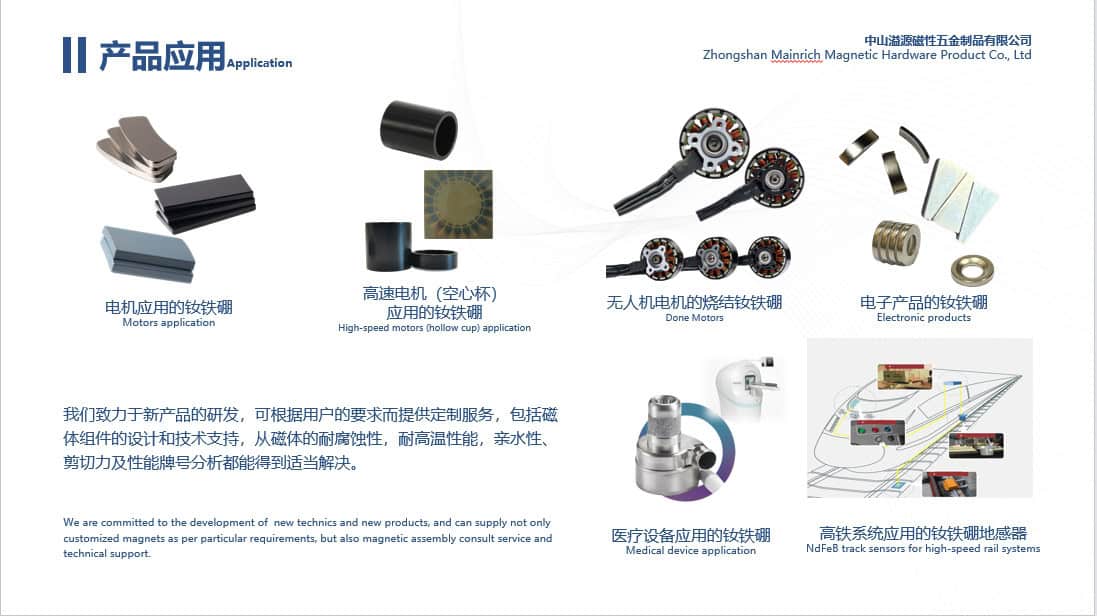

Top 5 Industrial Uses for N42 Magnets (Beyond Basics)
Forget fridge magnets—discover how N42 powers tech you’d never suspect, from AI robots to surgical tools.
N42 magnets are critical in brushless DC motors (drones), magnetic couplings (chemical pumps), linear actuators (3D printers), vibration sensors (IoT devices), and MRI shimming systems.
Cutting-Edge Applications

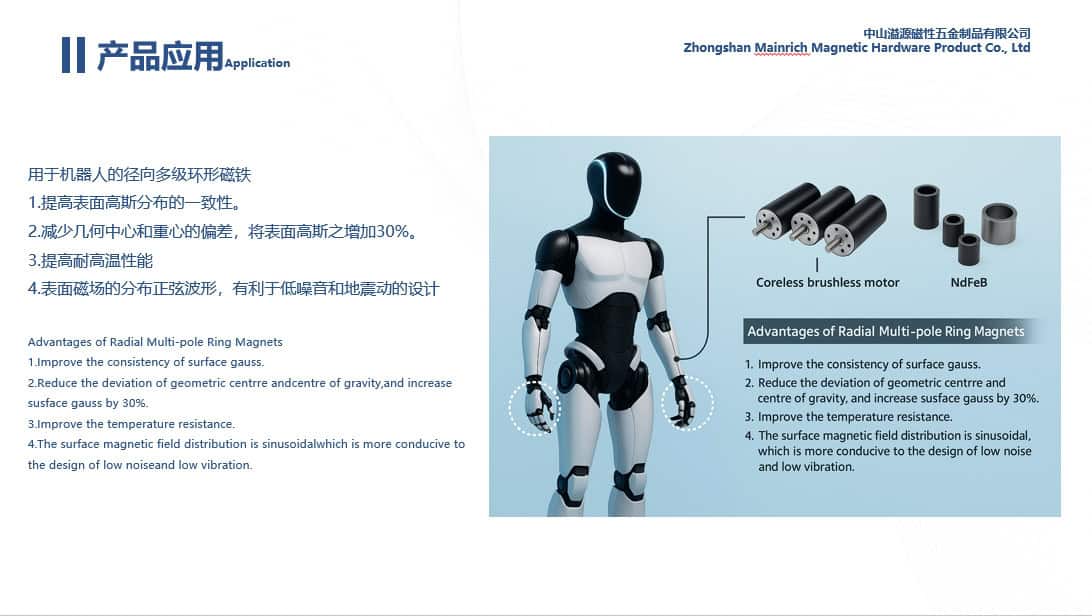

- Use: Servo motors in collaborative robots
- Example: A brand’s arm robot uses N42-based motors for precision movement.
2. Renewable Energy
- Use: Direct-drive wind turbine generators
- Stats: N42 reduces generator weight by 30% vs. ferrite magnets.
- Use: MRI shim coils
- Why N42? Stable flux density over 8-hour scans.
4. Automotive Innovations
- Use: Regenerative braking systems
- Case: Uses N42SH in brake energy recovery.
5. Industrial Automation
- Use: Magnetic encoders for CNC machines
- Accuracy: ±0.01mm positioning with N42 magnets.
How to Choose a Reliable Neodymium Magnet Manufacturer
Your supplier impacts project success. Here’s a factory owner’s checklist—tested through 30 years of B2B partnerships.
Select manufacturers with ISO 9001/14001, RoHS compliance, and in-house testing labs. Demand technical docs (BH curves, coating specs) and ask for 5-10 free samples for validation.
Supplier Vetting Protocol
1. Certifications Non-Negotiables
- ISO 9001 (Quality Management)
- ISO/TS 16949 (Automotive Grade)
- REACH/RoHS (Environmental Compliance)
2. Technical Capability Audit

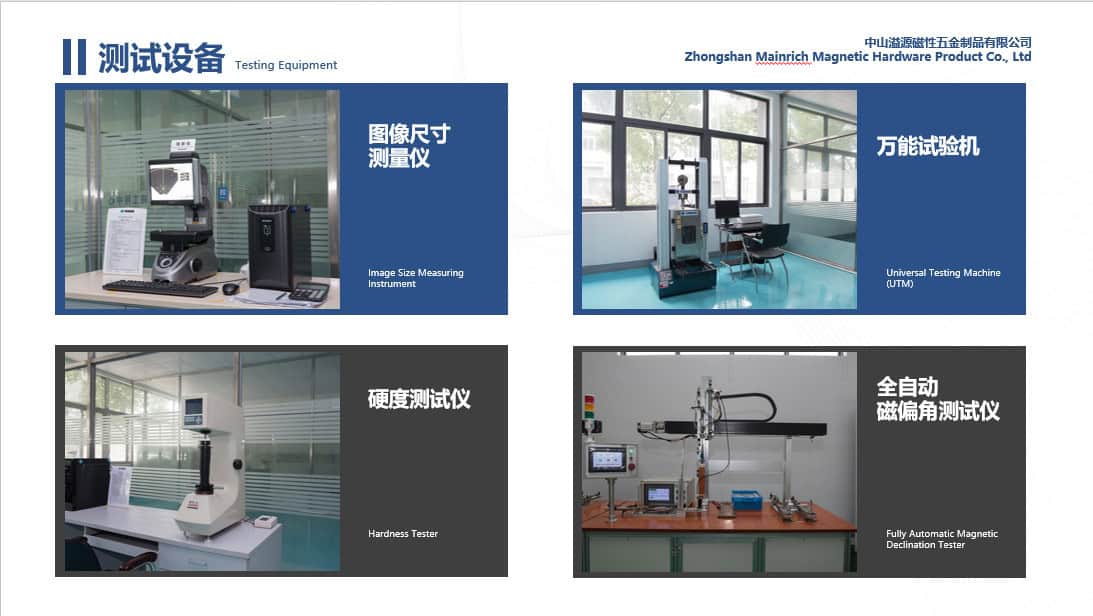

- Testing Equipment: Flux scanner, salt spray tester
- Customization: ±0.1mm tolerance, custom coatings (Zn, Au, PTFE)
- R&D Support: FEM simulations for magnetic circuit design
3. Logistics & Scalability
- MOQ: <100pcs for prototypes
- Lead Time: 10-15 days for 10,000pcs orders
- Global Reach
Why Partner With Mainrich?
- 30+ years supplying Johnson Electric, Moons’, and other global brands
- Free BH curve reports with every batch
Conclusion
N42 neodymium magnets offer the optimal balance of strength, thermal resilience, and cost for 90% of industrial applications. Partner with certified manufacturers like Mainrich to tailor solutions—engineered for performance, priced for scale.
Frequently Asked Questions About N42 Magnets
Q1: What does the grade N42 magnet mean?
A: N42 is a neodymium magnet grade indicating a maximum energy product of 42 MGOe, which defines its magnetic strength. The "N" stands for neodymium, a powerful rare-earth magnet, and “42” refers to its strength level. Higher numbers mean stronger magnets.
Q2: Which magnet is stronger, N42 or N52?
A: N52 is stronger than N42, with about 20% greater magnetic strength for the same size. However, N42 is more cost-effective and widely used in industrial and robotic systems where maximum strength isn’t always necessary.
Q3: Why are N42 magnets so commonly used?
A: N42 magnets offer a strong balance of power and affordability, making them one of the most widely used magnet grades. They deliver excellent magnetic strength at a lower price than high-end grades like N52, ideal for robotics, machinery, and automotive applications.
Q4: How much weight can an N42 magnet hold?
A: It depends on size, but a large N42 disc magnet can hold up to 165 lbs, while a smaller one may hold 4–5 lbs. Even compact N42 magnets provide impressive force, suitable for industrial and automotive applications.
Q5: Can N42 magnets be used at high temperatures (what do N42H and N42SH mean)?
A: Standard N42 magnets can withstand up to 80 °C. Variants like N42H (120 °C) or N42SH (150 °C) offer better high-temperature performance. These are preferred in automotive engines, robotics, or industrial heat-exposed environments.
Q6: Where are N42 magnets used in industry, robotics, and automotive applications?
A: N42 magnets are found in electric motors, robotic arms, servo drives, and automotive sensors. Their compact strength makes them ideal for precision motion control, magnetic clutches, and assembly fixtures in advanced automation systems.
Q7: Do N42 neodymium magnets require special handling or coatings?
A: Yes. N42 magnets are brittle and prone to corrosion. They’re usually coated with nickel-copper-nickel or epoxy to prevent rust. Handle with care to avoid chipping or injury due to their strong magnetic pull.
Q8: What is the strongest neodymium magnet grade available?
A: The strongest grades currently are N55–N58, though N52 is the most commonly available. These ultra-strong magnets are used when maximum performance is required, but N42 remains a top choice for cost-effective strength.
-
